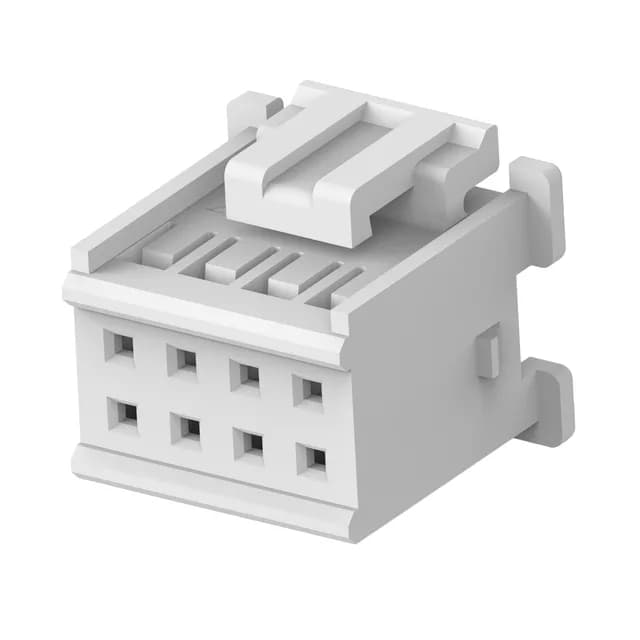

Economy Power 2.5 Plug Housing, 8 Circuits
The housing is molded from natural polyamide (PA66) and is glow wire compliant per IEC 60335-1, a requirement for equipment that must resist ignition under fault conditions.
Pitch, Row Spacing, and Mating Half
Both the pitch between positions and the row spacing are 0.098" (2.50mm). That means the 8 circuits are arranged in two rows of 4, with the same 2.50mm centerline in both axes. The mating receptacle is the Economy Power 2.5 header — confirm the position count and orientation (vertical or right-angle) against your board layout before ordering.
Contacts and Termination
You need the matching Economy Power 2.5 female socket crimp terminal (TE part number 1-1703732-series, typically). Wire gauge range and current rating depend on the terminal selected; the housing itself is rated for the full series operating temperature of -55°C to 105°C.
