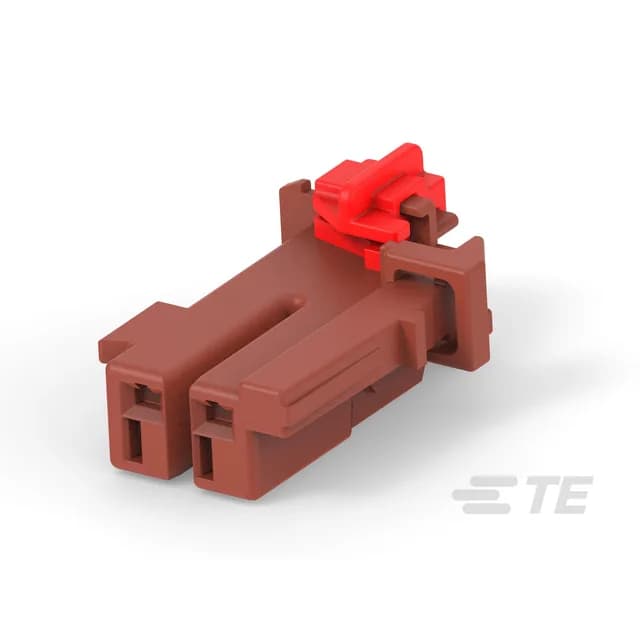

2-Position MCON 1.2 Receptacle for Unsealed Harness Applications
Each position accepts a standard MCON 1.2 crimp terminal — the 1.2mm contact blade width is the series hallmark, sized for signal and low-power circuits rather than main bus current.
Crimp Termination and Free-Hanging Mount
This is the standard unsealed MCON 1.2 termination sequence: strip, crimp, insert, pull-test. The mating half is a male header or plug from the same MCON 1.2 family, with 1.2mm blade contacts that engage the receptacle's sockets. No secondary TPA (terminal position assurance) is listed on this variant — the primary latch alone retains the contact.
