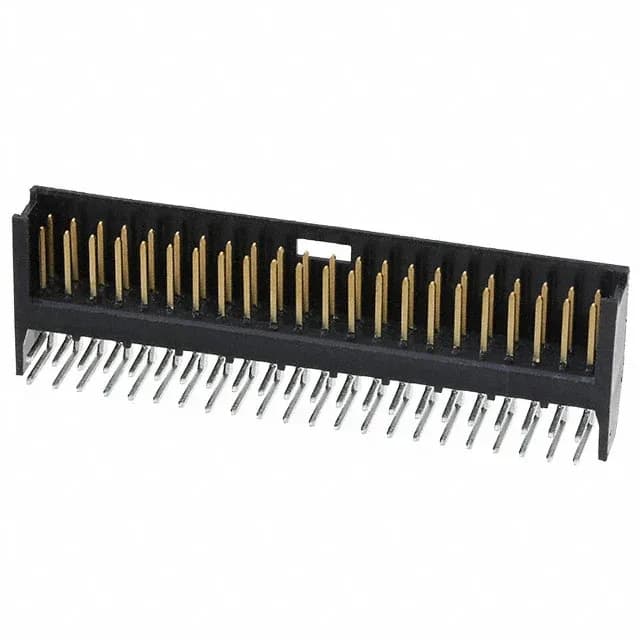

TE Connectivity AMPMODU Mod II header, 280393-2, 44 positions, 2.54 mm pitch, right-angle through-hole, shrouded with detent lock, gold mating finish, 3 A per contact, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 40V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 44 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0.100" (2.54 mm) pitch and 0.100" row spacing match standard ribbon-cable and IDC socket footprints. The brass contacts use a gold finish on the mating end (15.0 µin) and a tin finish on the solder posts (98.4 µin), balancing corrosion resistance in the mated interface with solderability at the board.
As a shrouded header with a 0.100" pitch and detent lock, it mates with AMPMODU Mod II receptacles or IDC sockets of the same pitch and position count. Confirm the mating half's keying and latch compatibility before committing.
