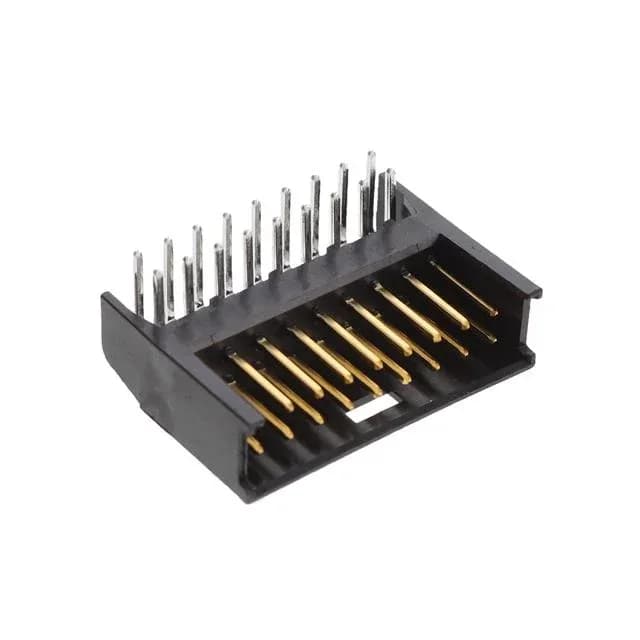

TE Connectivity AMPMODU Mod II header, order code 280510-2, 18 positions, dual row, 0.100" (2.54mm) pitch, 3A, 40V, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 40V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 280510-2 is the 18-circuit member of TE Connectivity's AMPMODU Mod II shrouded header line, mating with matching receptacle connectors in board-to-board or cable applications. It carries gold-plated mating contacts rated 3A at 40V, uses a through-hole right-angle termination, and is housed in a UL94 V-0 thermoplastic body with a detent lock for vibration resistance.
The 280510-2 is a dual-row header with 18 positions, all loaded. The pinout follows the standard AMPMODU Mod II grid at 0.100" row spacing.
