TE Connectivity AMP Connectors 282079-2 — Connector Housings

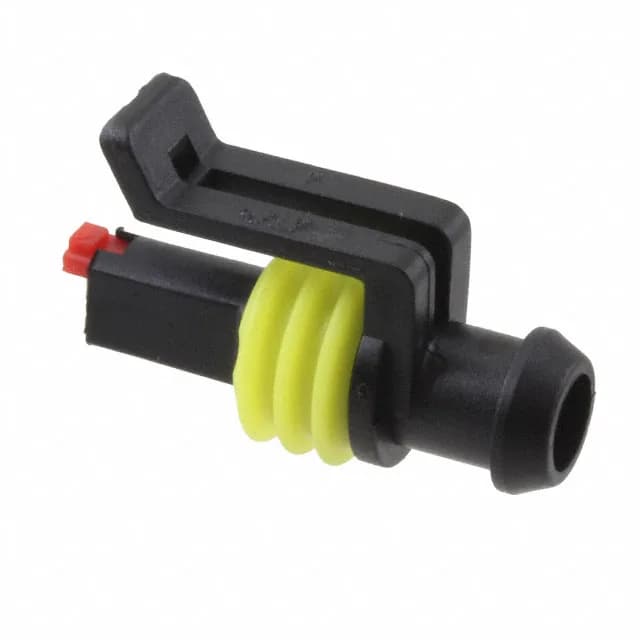

TE Superseal 282079-2 1-Pos Plug Housing, Black

MPN282079-2
Active

TE Connectivity Superseal 282079-2, 1-position plug housing, black PA66, latch lock, free-hanging, crimp termination, -40°C to 125°C.

$0.7500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSuperseal
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

282079-2 specifications
ParameterValue
SeriesSuperseal
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Lock
Operating temperature-40°C ~ 125°C
ColorBlack
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
NoteContacts Not Included
PackageBulk
Rows1
Contact terminationCrimp
Positions1

Product details

The TE Connectivity Superseal 282079-2 is a 1-position plug housing from the Superseal series, a sealed connector family originally developed for automotive underhood and harsh-environment industrial applications. It accepts a female socket contact terminated via crimp, and the housing is free-hanging (inline) with no panel-mount feature. The single-position format makes it a natural fit for discrete sensor leads, solenoid pigtails, or inline splice points where a multi-circuit connector would be overkill.

What Contacts Fit and What to Watch For

The housing accepts the standard Superseal 1.5 mm or 2.8 mm tab-width terminals depending on the current requirement — verify the terminal cross-section against your wire gauge and current draw.

Frequently asked questions

Is 282079-2 waterproof?

The Superseal series is designed as a sealed connector family for automotive underhood and outdoor industrial use, but the 282079-2 listing does not carry an explicit IP rating. The latch lock and PA66 housing with glass fill are consistent with a sealed design when mated with the correct receptacle and properly seated terminals. For a guaranteed waterproof rating, verify the full mated assembly against the IP specification in the TE product drawing.

What is the difference between 282079-2 and 282079-1?

The 282079-2 is a black plug housing; the 282079-1 is the same 1-position Superseal plug housing but in a different colour — typically grey or natural. The electrical and mechanical specifications are identical. The colour difference is cosmetic and does not affect fit, function, or mating compatibility.
