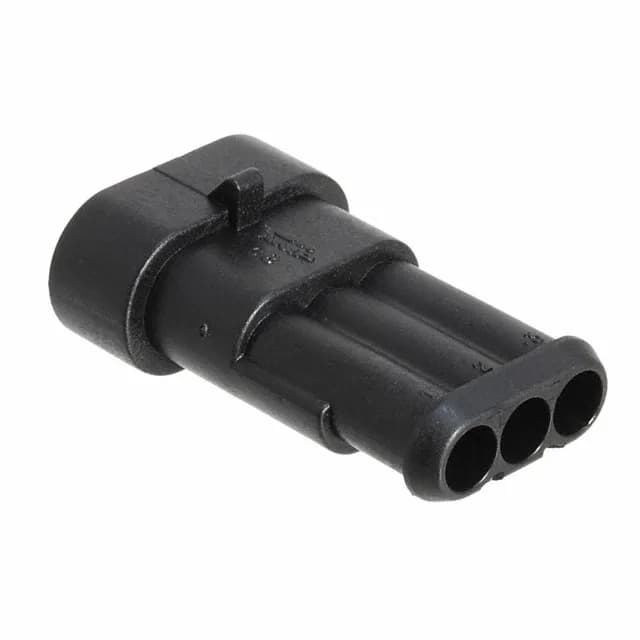

TE Connectivity Superseal receptacle housing, 282105-1, 3 positions, 1 row, 6.00mm pitch, free hanging (in-line), crimp termination, locking ramp, black PA66 housing.
| Parameter | Value |
|---|---|
| Series | Superseal |
| Type | Tab |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Operating temperature | -40°C ~ 125°C |
| Color | Black |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.236\" (6.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 3 |
It uses a 6.00mm pitch — wide enough to accommodate the wall thickness of the individual wire seals and the locking ramp that gives the mated pair its vibration resistance.
The mating half is a Superseal plug housing with the same 6.00mm pitch and 3-position count; the ramp on the receptacle engages a matching latch on the plug. The housing is keyed (polarized) so you can't mis-mate it — the ramp profile only aligns one way.
The ramp engages with an audible click — that's your field confirmation the pair won't vibrate loose.
