TE Connectivity AMP Connectors 282194-1 — Connector Housings

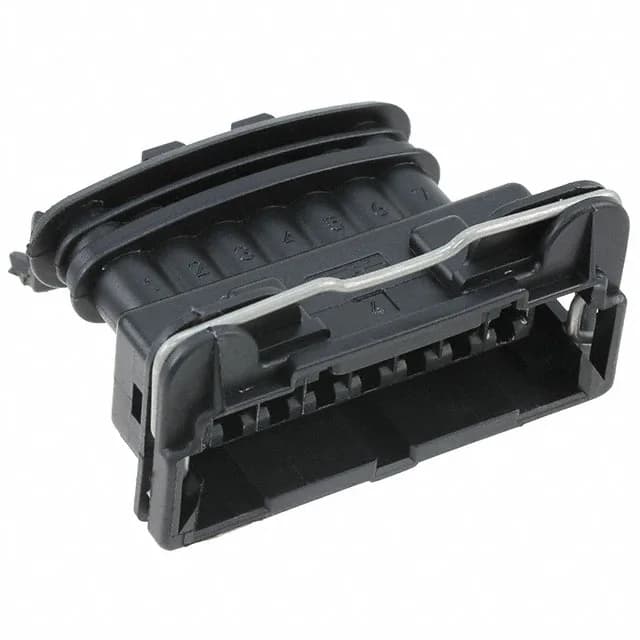

TE Connectivity 282194-1 Junior Power Timer Receptacle

MPN282194-1
Active

TE Connectivity Junior Power Timer receptacle housing, 7 positions, single row, 5.00 mm pitch, free hanging, crimp termination, splash-proof, black PA66, -30°C to 125°C.

$3.0000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesJunior Power Timer
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

282194-1 specifications
ParameterValue
SeriesJunior Power Timer
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-30°C ~ 125°C
ColorBlack
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.197\" (5.00mm)
PackageBulk
FeaturesSplash-Proof
Rows1
Contact terminationCrimp
Positions7

Product details

Housing for a 7-Circuit Splash-Proof Harness

The housing is molded from black PA66 and rated for -30°C to 125°C, so it handles underhood heat and winter cold without cracking.

You will need the matching Junior Power Timer female socket crimp terminals (TE part number 282403-1 or equivalent) and a hand or automatic crimp tool. The housing accepts the standard Junior Power Timer terminal, which handles wire gauges typical for 5.00 mm-pitch power circuits. For the mating half, use the corresponding Junior Power Timer plug housing (e.g., 1-1376477-6 is a 6-position plug, but for 7 circuits you need the 7-position plug, TE 282190-1).

Frequently asked questions

Where can I buy 282194-1 and how do I get a price?

The 282194-1 is sourced to order through our distribution channel. Submit an RFQ with your target quantity, and we will confirm current availability and pricing at quote time.

Does 282194-1 come with contacts?

No — the 282194-1 is a housing only; contacts are not included. You must order the Junior Power Timer female socket terminals separately.

What is the pitch of 282194-1?

The pitch is 5.00 mm (0.197 inches), which is standard for the Junior Power Timer series and provides adequate creepage for power-level circuits.

Is 282194-1 splash proof?

Yes — the housing is listed with a splash-proof feature, meaning the mated connector assembly resists water spray and damp conditions, suitable for engine compartments and washdown areas.

What is the mating connector for 282194-1?

The mating half is a Junior Power Timer plug housing with the same 5.00 mm pitch and 7 positions. The TE part number for the 7-position plug is 282190-1. Use the same series female socket terminals in both halves.
