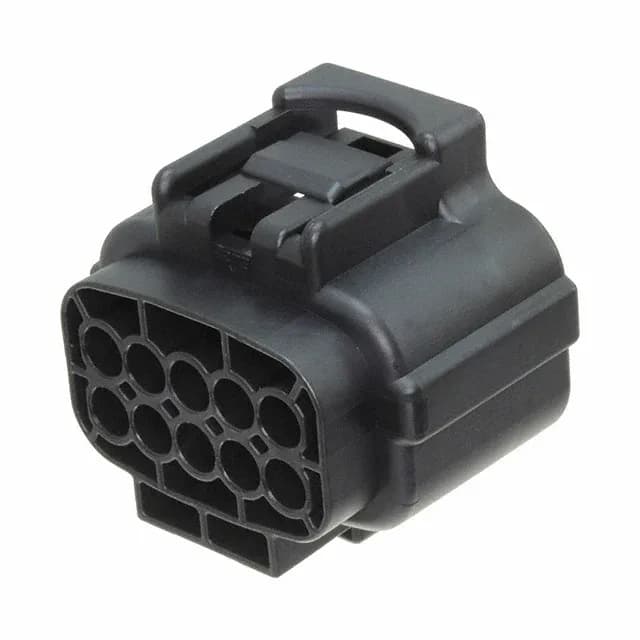

Sealed 10-Position Plug Housing for Automotive Harnesses
The 4.80 mm pitch and 5.60 mm row spacing provide adequate creepage for the voltage class typical of underhood harnesses. The housing is molded from black PBT (Polybutylene Terephthalate) and carries a sealed feature designation, meaning the interface and wire-entry seals are accommodated in the housing design — the connector is intended for applications where moisture and dust ingress must be controlled.
Termination is crimp-style: the housing accepts the matching EconoSeal J Mark II female socket contacts (sold separately). The free-hanging (in-line) mounting style suits harness-to-harness or harness-to-device connections where a panel cutout is not available. The black PBT insulation material is rated UL94 V-0 (implied by the series standard) for flame retardance inside an enclosure.
