TE Connectivity AMP Connectors 282956-1 — Connector Housings

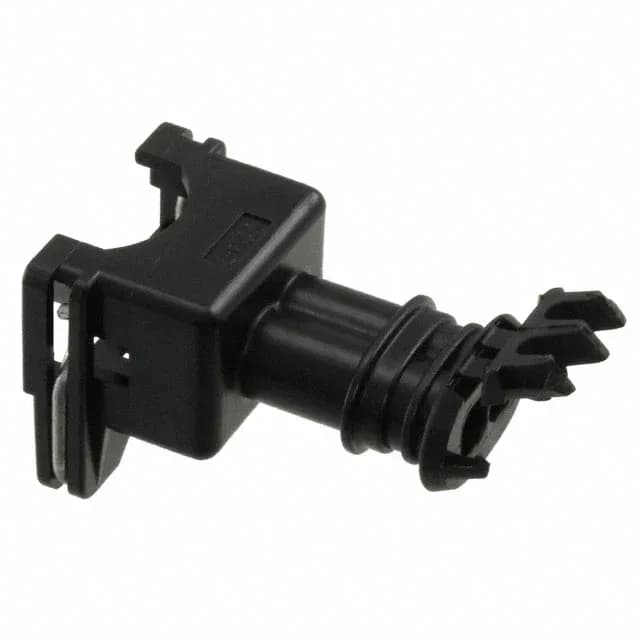

TE 282956-1 Junior Power Timer Receptacle Housing, 2 Pos

MPN282956-1
Active

TE Connectivity Junior Power Timer receptacle housing, 282956-1, 2 positions, 1 row, 5.00 mm pitch, free-hanging in-line, crimp termination, splash-proof, black PA66, -30°C to 125°C.

$1.2400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesJunior Power Timer
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

282956-1 specifications
ParameterValue
SeriesJunior Power Timer
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-30°C ~ 125°C
ColorBlack
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.197\" (5.00mm)
PackageBulk
FeaturesSplash-Proof
Rows1
Contact terminationCrimp
Positions2

Product details

The housing is molded from black PA66 rated for -30°C to 125°C, so it handles underhood and industrial cabinet heat without softening.

Splash-Proof Build for Damp Environments

The housing carries a splash-proof feature, meaning it seals against water spray when mated with the corresponding Junior Power Timer plug and the correct seal-caps or grommets. This makes it a fit for engine compartments, outdoor power equipment, and washdown-area harnesses where a standard unsealed housing would wick moisture into the crimp barrel.

Crimp Termination – Contacts Ordered Separately

Frequently asked questions

What is the pin pitch of 282956-1?

The pitch is 0.197" (5.00 mm) centerline to centerline.

Is 282956-1 splash-proof?

Yes, the housing is listed as splash-proof, making it suitable for damp or washdown environments when mated with the correct plug and seal components.
