TE Connectivity AMP Connectors 284666-1 — Connector Housings

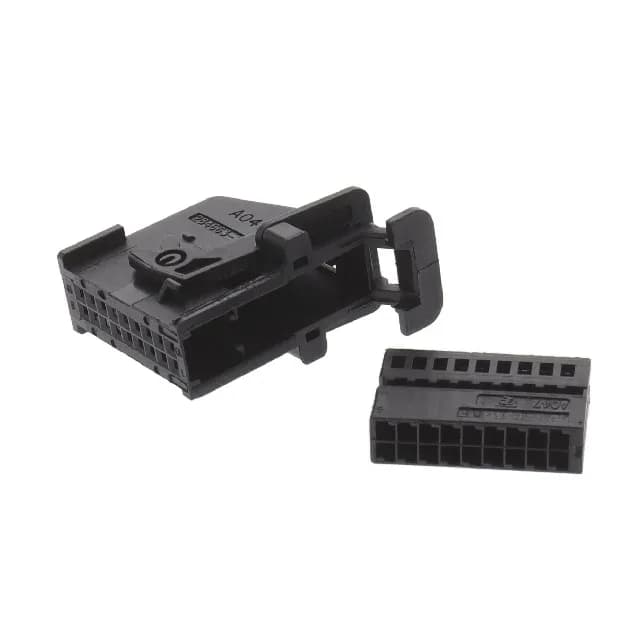

284666-1 TE Connectivity Micro Quadlok Plug Housing 18 Pos

MPN284666-1
Active

TE Connectivity AMP Connectors Micro Quadlok series, 284666-1, 18-position 2-row plug housing, 0.100" (2.54mm) pitch, lever lock, crimp termination, free hanging, -40°C to 120°C, black polyamide, contacts not included.

$1.8400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMicro Quadlok
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

284666-1 specifications
ParameterValue
SeriesMicro Quadlok
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLever Lock
Operating temperature-40°C ~ 120°C
ColorBlack
Insulation materialPolyamide (PA), Nylon, Glass Filled
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBag
FeaturesCap (Cover)
Row spacing0.197\" (5.00mm)
Rows2
Contact terminationCrimp
Positions18

Product details

18-position lever-lock housing for harness builds

The 284666-1 is a 18-position, 2-row plug housing from TE's Micro Quadlok series, pitched at 0.100" (2.54mm) with a row spacing of 0.197" (5.00mm). It uses a lever-lock fastening system for positive retention in vibration-prone environments — the lever engages with a tactile snap, no separate latch to lose.

Thermal range and material choice

The black color is standard for this series. The included cap (cover) protects the contact cavities during shipping or when unmated — useful if the harness sits on the shelf before final assembly.

Frequently asked questions

What contacts fit the 284666-1 housing?

TE's Micro Quadlok terminal series mates with this plug — confirm the wire gauge and plating grade (tin vs gold) for your application.

What is the 284666-1 pitch?

The pitch is 0.100" (2.54mm) between positions, with a row spacing of 0.197" (5.00mm). This is a standard 2.54mm pitch, matching many TE Micro Quadlok headers and receptacles.
