TE Connectivity AMP Connectors 284742-1 — Connector Housings

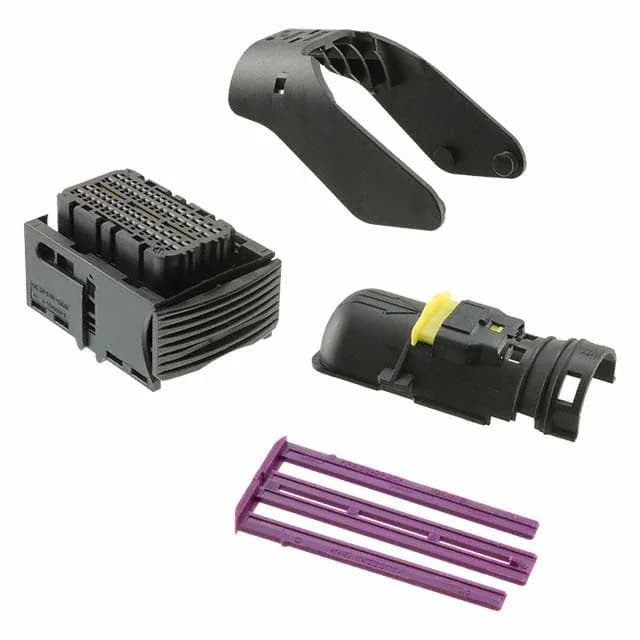

TE 284742-1 Micro Quadlok Receptacle Housing, 60 Pos

MPN284742-1
Active

TE Connectivity Micro Quadlok receptacle housing, 284742-1, 60 positions, 4 rows, 3.00 mm row spacing, free-hanging (in-line), black PA66 housing, -40°C to 125°C, contacts not included.

$13.3900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro Quadlok
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

284742-1 specifications
ParameterValue
SeriesMicro Quadlok
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-40°C ~ 125°C
ColorBlack
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
NoteContacts Not Included
PackageBulk
Row spacing0.118\" (3.00mm)
Rows4
Positions60

Product details

60-Position 4-Row Receptacle Housing for Harness Builds

The TE Connectivity 284742-1 is a 60-position receptacle housing from the Micro Quadlok series, arranged in 4 rows with a 3.00 mm row spacing. It is a free-hanging (in-line) connector — a cable-side housing designed to terminate a harness, not a panel or board mount. A critical procurement note: the housing ships empty — the female socket contacts are ordered separately, so the BOM needs a line item for the matching crimp terminals.

What It Mates With and What Completes the Connection

This receptacle housing accepts female socket contacts (not included). The mating half is a Micro Quadlok header — a 60-position, 4-row pin header.

Frequently asked questions

What contacts are used with 284742-1?

The 284742-1 housing accepts Micro Quadlok female socket contacts, which are not included with the housing and must be ordered separately. Select the appropriate crimp terminal for your wire gauge from the Micro Quadlok terminal family.
