TE Connectivity AMP Connectors 293651-4 — LED Lighting Connectors

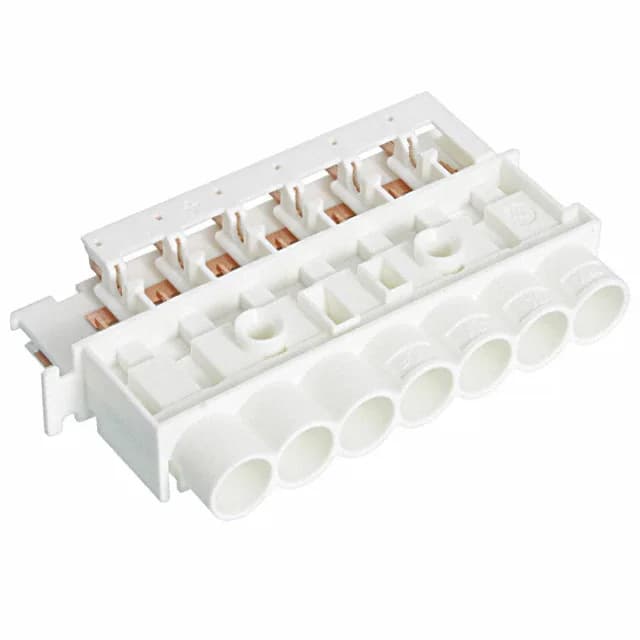

TE Connectivity 293651-4 Nector S Connector, 7 Position, 42V

MPN293651-4
Active

TE Connectivity Nector S, 293651-4, Board to Cable/Wire, 7 Positions, 7A, 42V, Free Hanging (In-Line), Keying HV-2 and LV-2, White Housing.

$8.4900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 293651-4 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

293651-4 specifications
ParameterValue
SeriesNector S
MountingFree Hanging (In-Line)
Connector typeDistributor
Voltage rating42V
Current rating7A
Operating temperature-40°C ~ 120°C
Housing colorWhite
Contact materialCopper Alloy
Housing materialPolyamide (PA6), Nylon 6
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying HV-2 and LV-2
Positions7

Product details

Nector S 7-Position In-Line Connector

The 293651-4: It carries a 42V voltage rating and 7A current rating per circuit, with a white polyamide (PA6) housing and copper alloy contacts. The connector includes keying options HV-2 and LV-2 to prevent mismating in multi-connector harness assemblies.

Keying and Mating Protection

The 293651-4 features both HV-2 and LV-2 keying, a practical safeguard when multiple similar connectors share a harness. The keying ensures only the matching receptacle with the correct key code can mate, reducing the risk of wiring errors during assembly or field service.

The polyamide housing holds up in these conditions without losing dimensional stability.

Frequently asked questions

What are the keying options for 293651-4?

The 293651-4 includes keying options HV-2 and LV-2, which prevent mismating with connectors of different key codes in the same harness.
