TE Connectivity AMP Connectors 3-1534127-1 — Connector Housings

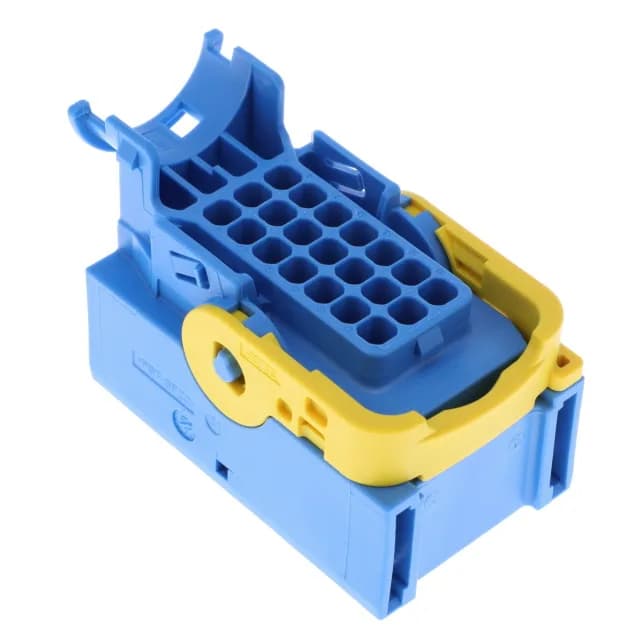

TE LEAVYSEAL 3-1534127-1, 21-Pos 5.00mm Receptacle Housing

MPN3-1534127-1
Active

TE Connectivity LEAVYSEAL receptacle housing, 21 positions, 3 rows, 5.00mm pitch, 0.217" row spacing, free-hanging crimp termination, blue PBT housing, -40°C to 120°C, contacts not included.

$11.2500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesLEAVYSEAL
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-1534127-1 specifications
ParameterValue
SeriesLEAVYSEAL
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-40°C ~ 120°C
ColorBlue
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.197\" (5.00mm)
PackageBulk
Row spacing0.217\" (5.51mm)
Rows3
Contact terminationCrimp
Positions21

Product details

21-Position, 3-Row LEAVYSEAL Receptacle Housing for Sealed Harness Runs

The three-row layout at a 5.00 mm pitch packs 21 circuits into a compact footprint, with a 0.217" row spacing that keeps the overall width manageable for tight harness routing. The blue PBT housing signals the connector's role at a glance on the assembly line — a visual cue that reduces the chance of mismating a 3-row housing with a 2-row counterpart.

Crimp Termination — Order the Contacts Separately

Standard LEAVYSEAL female crimp terminals (typically tin or gold-plated, depending on the wire gauge and environmental exposure) are the mating half for this cavity. The free-hanging in-line mounting means the housing floats in the harness, absorbing vibration without transmitting it to the terminal interface. For field service, the crimp termination allows individual contact replacement without removing the entire harness section.

Frequently asked questions

Does 3-1534127-1 include contacts?

No. The housing ships empty — contacts are not included. Standard LEAVYSEAL female crimp terminals must be ordered separately and crimped onto the wire before insertion.

What is the pitch and row spacing of 3-1534127-1?

The pitch is 0.197" (5.00 mm) between adjacent contacts in a row, and the row spacing is 0.217" (5.51 mm) between rows. The three rows carry 21 positions total.
