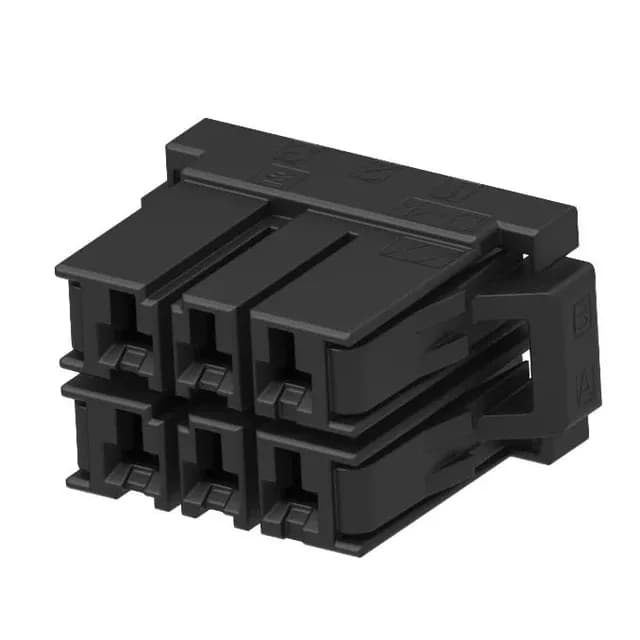

TE Connectivity Dynamic D-4200 receptacle housing, 3-1903329-3, 6 positions, 2 rows, 0.250" (6.35mm) pitch, 0.346" (8.80mm) row spacing, free-hanging inline, latch lock, crimp termination, black thermoplastic polyester glass-filled housing, -55°C to 105°C, RoHS.
| Parameter | Value |
|---|---|
| Series | Dynamic D-4200 |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.250\" (6.35mm) |
| Package | Bag |
| Row spacing | 0.346\" (8.80mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 6 |
The 0.250" (6.35mm) pitch and 0.346" (8.80mm) row spacing set the footprint for the mating header and the crimp terminal cavity layout.
This housing accepts male pin crimp contacts terminated to discrete wires. The bag packaging suits low-volume harness builds; for higher volumes, box packaging is available on sibling parts.
No, contacts are not included. The 3-1903329-3 is a receptacle housing only; you must order the matching Dynamic D-4200 male pin crimp terminals separately.
This matches the Dynamic D-4200 series headers at the same pitch.
Yes, it is RoHS compliant.
