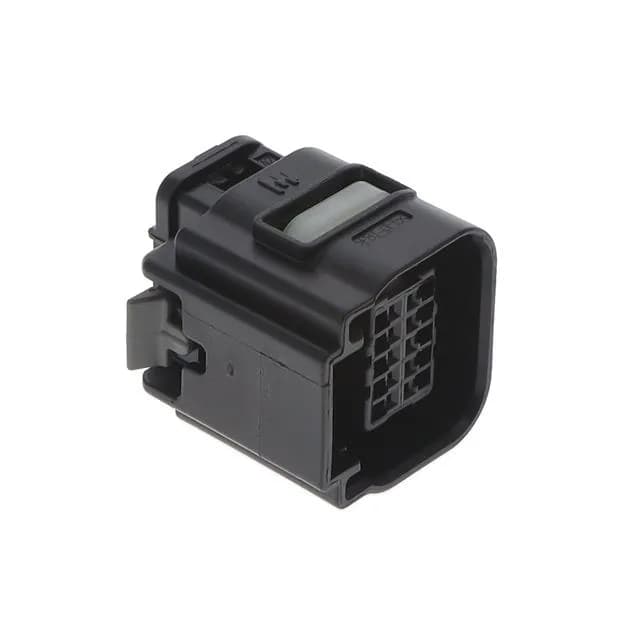

TE Connectivity Generation Y plug, 3-2098269-1, 10 positions, 2 rows, 0.100" (2.54mm) pitch, crimp termination, female socket, free hanging, latch holder, black PBT housing.
| Parameter | Value |
|---|---|
| Series | Generation Y |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 125°C |
| Color | Black |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Row spacing | 0.100\" (2.54mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 10 |
The crimp termination (female socket contacts, ordered separately) allows field-termination of individual wires — the housing accepts the matching Generation Y crimp terminal for 20-24 AWG wire.
No end-of-life notice or last-time-buy schedule is on record. The base product number 2098269 identifies the series tooling; the -1 suffix denotes the 10-position variant.
No minimum quantity is imposed by the sourcing channel.
