TE Connectivity AMP Connectors 3-5499206-0 — Pin Headers

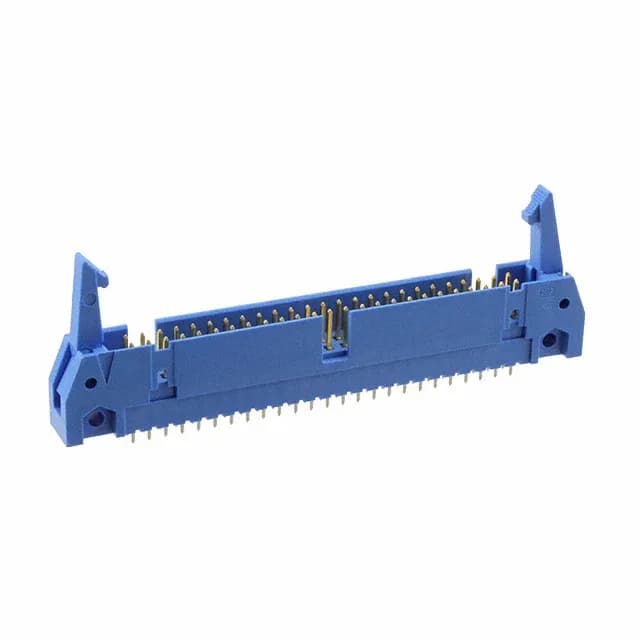

3-5499206-0 TE AMP-Latch Header 50 Pos 2.54mm Pitch

MPN3-5499206-0
Active

TE Connectivity AMP-Latch header, 3-5499206-0, shrouded 4-wall, 50 positions, 2 rows, 0.100" (2.54mm) pitch, through-hole solder, male pins, 1 A, 250 VAC, 30 µinch gold mating finish, blue insulation, UL94 V-0.

$12.8600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-5499206-0 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A
Operating temperature-65°C ~ 105°C
Insulation colorBlue
Insulation height0.549\" (13.94mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

3-5499206-0 additional specifications
ParameterValue
PackageTray
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions50
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Overall contact length0.639\" (16.23mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

50-Position Shrouded Header for Board-to-Cable Interconnects

The latch lock/eject hooks provide positive retention against vibration and a mechanical lever for unmating when the connector pair is packed tightly on the board edge.

The base product number is 5499206; variations in plating or packaging carry different dash numbers. No official successor or form-fit-function cross is listed, so the 3-5499206-0 is the direct part for this pinout and finish.

Keying Slot and Mounting Flange for Alignment

A keying slot in the shroud prevents mismating with non-keyed receptacles, and the mounting flange provides an additional mechanical anchor to the PCB — useful when the cable harness exerts shear force on the header during routing or vibration.

Frequently asked questions

Where can I buy 3-5499206-0 and how do I get a price?

Submit an RFQ for current availability and pricing — no stock-holding claim is made on this listing.

What is the pinout of 3-5499206-0?

The pinout is a standard dual-row 0.100" pitch grid, 50 positions loaded in all rows. The exact pin-1 location is indicated by the keying slot and the chamfered corner of the shroud — refer to the TE drawing for the numbering sequence.

What is the mating connector for 3-5499206-0?

This header mates with AMP-Latch IDC receptacles in the same 50-position, 0.100" pitch footprint. The latch lock/eject hooks engage with the receptacle's locking ears.
