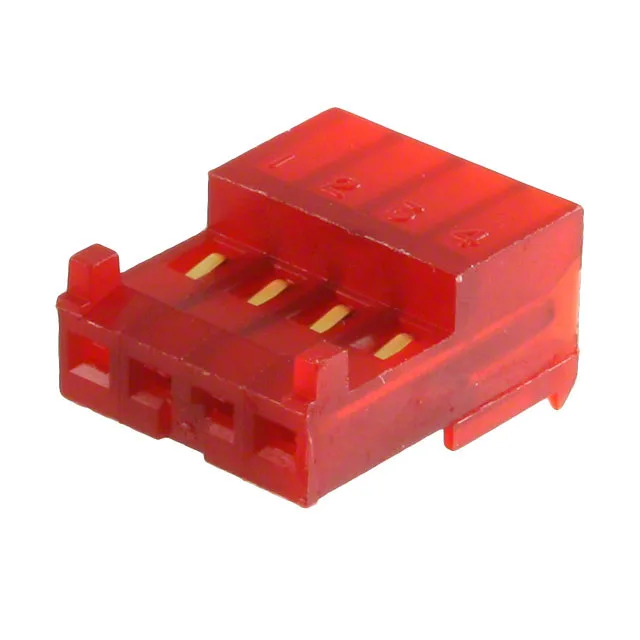

3-644038-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 3-644038-4 MTA-100 Receptacle, 4 Pos, IDC, 22 AWG, Gold

MPN3-644038-4
Active

TE Connectivity MTA-100 series, 3-644038-4, 4-position IDC receptacle, 0.100" (2.54mm) pitch, 1 row, gold-plated female socket contacts, 22 AWG, free-hanging right-angle, locking ramp, closed end, bulk.

$2.8900Ref. price · indicative, final on quote
3-644038-4 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

3-644038-4 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishGold
Rows1
Positions4
Contact finish thickness15.0µin (0.38µm)

Product details

4-Position IDC Receptacle for 22 AWG Harness Assembly

Closed-End IDC for Assembly Reliability

The closed-end design blocks the last cavity, so an operator cannot push a wire past the final position — a common error on open-end IDC connectors that causes intermittent opens. The right-angle cable exit (free-hanging, in-line or right-angle mounting) lets the harness lie flat against the board, saving vertical space in shallow enclosures. The red housing colour is a visual aid for line-side sorting when multiple MTA-100 receptacles share a harness.

Frequently asked questions

What wire gauge does 3-644038-4 support?

The 3-644038-4 is designed for 22 AWG discrete or ribbon cable, terminated via IDC.

What is the pitch of 3-644038-4?

The pitch is 0.100" (2.54mm), matching the standard MTA-100 header footprint.
