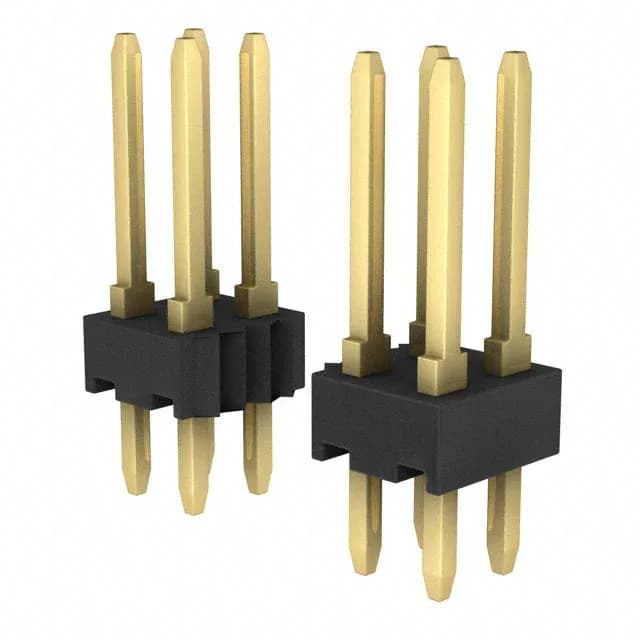

TE Connectivity AMP Connectors AMPMODU Mod II, Header, 60 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder Termination, Unshrouded, 15.0µin Gold Mating Finish, 3 A, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 60 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 3-87227-0 (60 positions, 0.100" pitch, unshrouded, 3 A) and the 1318699-3 (12 positions, 0.165" pitch, shrouded with latch lock, 5 A) serve different density and current requirements. The 3-87227-0 packs five times the circuit count in a denser pitch, while the 1318699-3 offers higher per-contact current and a shrouded, locking housing for vibration-prone cable-to-wire applications.
The mating pitch is 0.100" (2.54mm) with an identical row spacing of 0.100" (2.54mm).
No — the 3-87227-0 is an unshrouded header, meaning it has no polarization wall around the pins. The mating receptacle must be aligned by the board layout.
