TE Connectivity AMP Connectors 3-88179-4 — FFC / FPC Housings

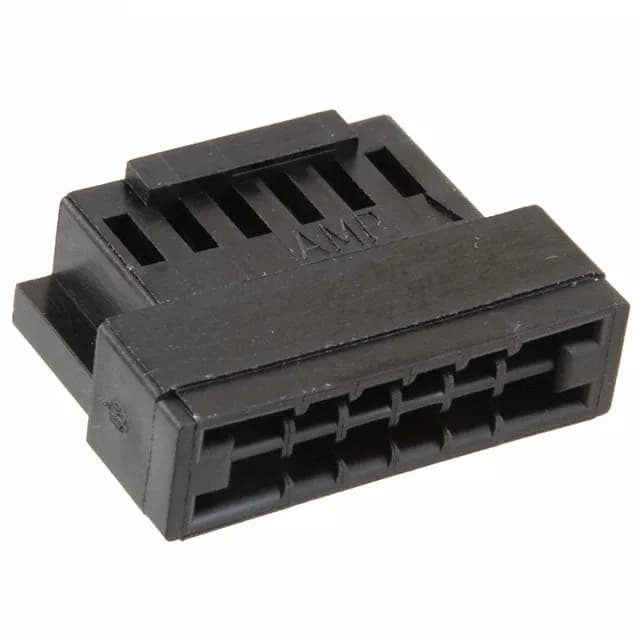

TE 3-88179-4 FFC Housing 12 Pos 2.54mm Pitch Active

MPN3-88179-4
Active

TE Connectivity AMP Connectors 3-88179-4, FFC receptacle housing, 12 positions, 0.100" (2.54mm) pitch, dual-row, detent lock, 1.5 A, 300 V, -65°C to 105°C, UL94 V-0, black PA nylon, ROHS3 compliant, bulk.

$1.8500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-88179-4 specifications
ParameterValue
Connector typeHousing for Female Contacts
Flat flex typeFFC, Discrete Wire
Voltage rating300 V
Current rating1.5 A
Wire gauge22-32 AWG
Operating temperature-65°C ~ 105°C
Housing colorBlack
Housing materialPolyamide (PA), Nylon, Glass Filled
Material flammability ratingUL94 V-0
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesPositions Stamped
Rows2
Locking featureDetent Lock
FFC, FCB thickness0.015mm
Insulation diameter0.045\" ~ 0.069\" (1.14mm ~ 1.75mm)
Positions12

Product details

The 3-88179-4: It accepts FFC cable or discrete wire from 22 to 32 AWG, with an insulation diameter range of 0.045" to 0.069" (1.14 mm to 1.75 mm). The detent lock holds the mated connector pair secure against vibration — common in control panels and industrial equipment where the harness sees moderate flex.

Contacts not included — order terminals separately

This housing ships without contacts. Confirm the wire gauge (22-32 AWG) and terminal plating (tin or gold depending on mating cycle and environmental requirements) before placing the full BOM.

Frequently asked questions

What is the pitch of TE 3-88179-4?

The pitch is 0.100" (2.54 mm), which sets the board footprint and the spacing between adjacent contacts.

Which contacts fit TE 3-88179-4 housing?

Contacts are not included — order them separately based on your wire gauge and plating preference.

Is TE 3-88179-4 RoHS compliant?

Yes, it is ROHS3 compliant.
