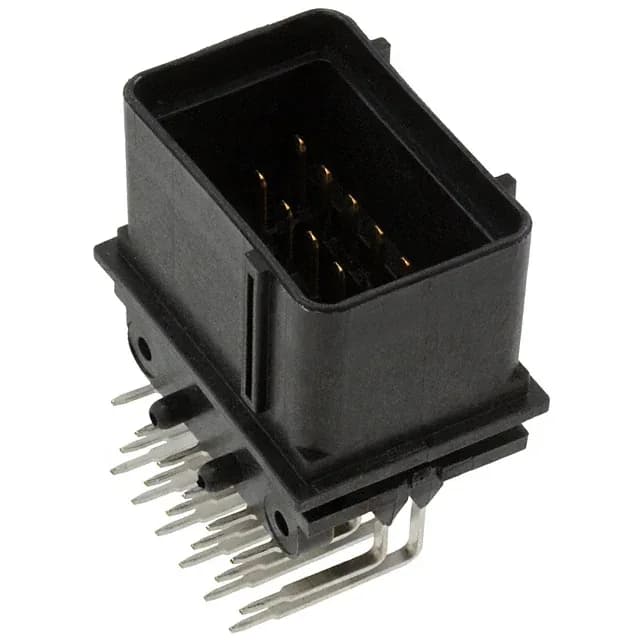

TE Connectivity AMP Connectors EconoSeal III 070 header, 344103-1, 18-position, 3-row, 5.00mm pitch, right-angle, through hole, shrouded, gold mating finish, locking ramp, active production.
| Parameter | Value |
|---|---|
| Series | EconoSeal III 070 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 1.165\" (29.60mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 3 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 18 |
| Row spacing - mating | 0.236\" (6.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
The 344103-1 is a TE Connectivity AMP Connectors EconoSeal III 070 series header, configured as a board-to-cable/wire interconnect with 18 positions across 3 rows. Mating pitch is 0.197" (5.00mm) with a row spacing of 0.236" (6.00mm), defining the PCB footprint for layout.
The part is ROHS3 compliant and available in bulk packaging.
The 344103-1 is a board-to-cable/wire header; it mates with a corresponding EconoSeal III 070 receptacle housing and terminals. Confirm the circuit count and row configuration for your specific harness.
