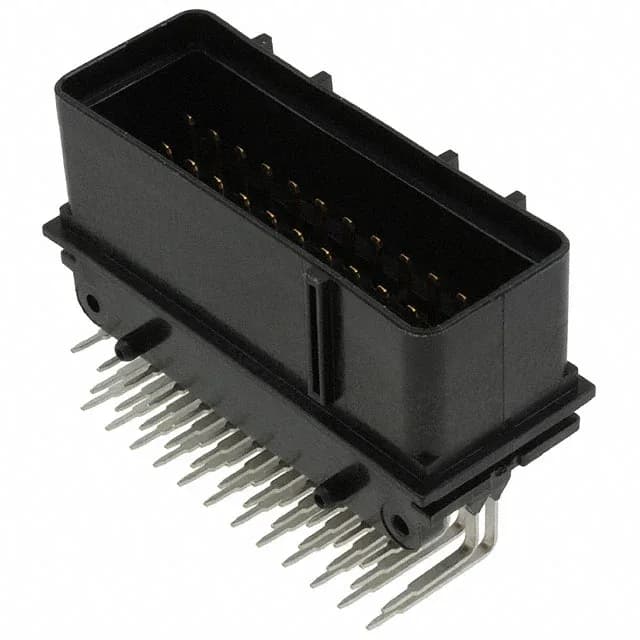

TE Connectivity AMP Connectors EconoSeal III 070 series, 344108-1, Board to Cable/Wire header, 36 positions, 5.00 mm pitch, 3 rows, through-hole right-angle, shrouded, locking ramp, gold mating contacts.
| Parameter | Value |
|---|---|
| Series | EconoSeal III 070 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 1.165\" (29.60mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 3 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 36 |
| Row spacing - mating | 0.236\" (6.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
The black glass-filled nylon housing carries a board guide that aligns the header during mating — helpful when the connector is hidden behind a panel or in a blind-mate assembly.
The 1-2232960-3 peer is a 3-position, 2.50 mm pitch single-row header — different row count, pitch, and contact finish — so it is not a functional replacement.
344108-1 is a header that mates with a corresponding EconoSeal III 070 receptacle housing (sold separately). The locking ramp and 5.00 mm pitch define the interface — confirm the position count and row configuration match your harness-side connector.
Pricing is confirmed at quote time against the BOM quantity. Submit an RFQ for current pricing and lead time.
