TE 344273-1 EconoSeal III Receptacle Housing, 3 Pos 4.80mm

MPN344273-1
Active

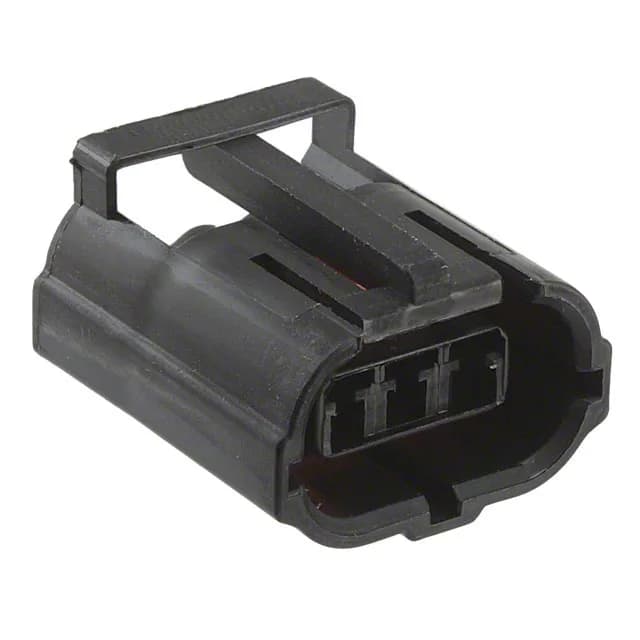

TE Connectivity EconoSeal III 070 receptacle housing, 344273-1, 3 positions, 1 row, 4.80mm pitch, free-hanging, crimp termination, black PA66, contacts not included.

$2.0400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesEconoSeal III 070
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

344273-1 specifications
ParameterValue
SeriesEconoSeal III 070
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
ColorBlack
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.189\" (4.80mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions3

Product details

The black PA66 (Nylon 6/6) housing carries a standard UL94 V-2 flame rating for under-hood and equipment-enclosure duty.

The listing note is straight: contacts are not included. For the EconoSeal III 070 series, the matching female socket terminal is the TE 344274-1 (for 17-20 AWG) or the 344275-1 (for 20-22 AWG), depending on your wire gauge.

This receptacle mates with the EconoSeal III 070 male header — the 3-position version is the TE 344276-1 (right-angle PCB mount) or the 344277-1 (straight through-hole). The series uses an integrated silicone seal inside the housing cavity that compresses against the header shroud when mated, giving an IP67-rated joint without a separate gasket. The primary latch on the housing top locks audibly; the connector stays mated under engine vibration without a secondary lock. The 4.80 mm pitch means the header footprint on the board is wide enough to route a 20 AWG power trace between pads.

Frequently asked questions

Where can I buy te connectivity 344273-1?

Buyers need to know which distributors stock this part for immediate purchase or lead time.

What is the price of 344273-1?

Pricing is a primary factor for sourcing decisions and budget planning.

Does 344273-1 include contacts?

The datasheet states contacts not included, so buyers must order them separately.

What is an equivalent or cross reference for 344273-1?

Engineers and buyers look for alternative parts for second sourcing or compatibility.

What is the mating connector for 344273-1?

Designers need to know the counterpart part to ensure fit and proper mating.

Is 344273-1 available in stock?

Immediate availability affects lead time and project schedules.
