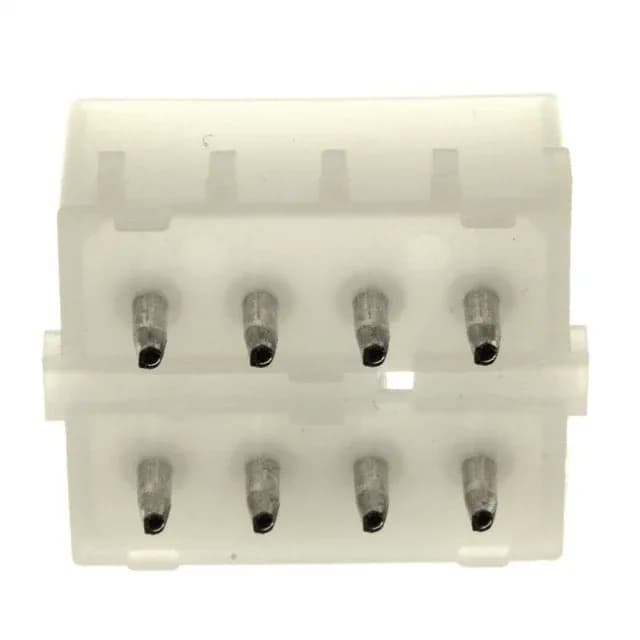

TE Connectivity AMP Connectors 350212-1, Commercial MATE-N-LOK, 8-position 2-row header, 0.200" (5.08 mm) pitch, 12 A per circuit 250 VAC, tin-plated circular contacts, through-hole solder, detent lock, shrouded 4-wall, -55°C to 105°C, UL94 V-2 polyamide, bulk pack.
| Parameter | Value |
|---|---|
| Series | Commercial MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250VAC |
| Current rating | 12A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.375\" (9.53mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 8 |
| Row spacing - mating | 0.360\" (9.14mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.181\" (4.60mm) |
The 350212-1 is an 8-position, 2-row vertical header from TE's Commercial MATE-N-LOK series. The 5.08 mm pitch and 9.14 mm row spacing give each circuit room to carry 12 A at 250 VAC — the limiting factor is the contact temperature rise, not the housing.
Yes, the 350212-1 is ROHS3 compliant, meaning it meets the current EU restriction on hazardous substances.
