TE Connectivity AMP Connectors AMPMODU System 50, FFC receptacle housing, 40 circuits, 0.050" (1.27 mm) pitch, 1.5 A, 100 V, latch lock, black polyester UL94 V-0, contacts not included.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Connector type | Housing for Female Contacts |
| Flat flex type | FFC |
| Voltage rating | 100 V |
| Current rating | 1.5 A |
| Operating temperature | -55°C ~ 105°C |
| Housing color | Black |
| Housing material | Polyester |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.050\" (1.27mm) |
| Package | Tray |
| Rows | 2 |
| Locking feature | Latch Lock |
| FFC, FCB thickness | 0.05-0.08mm |
| Positions | 40 |

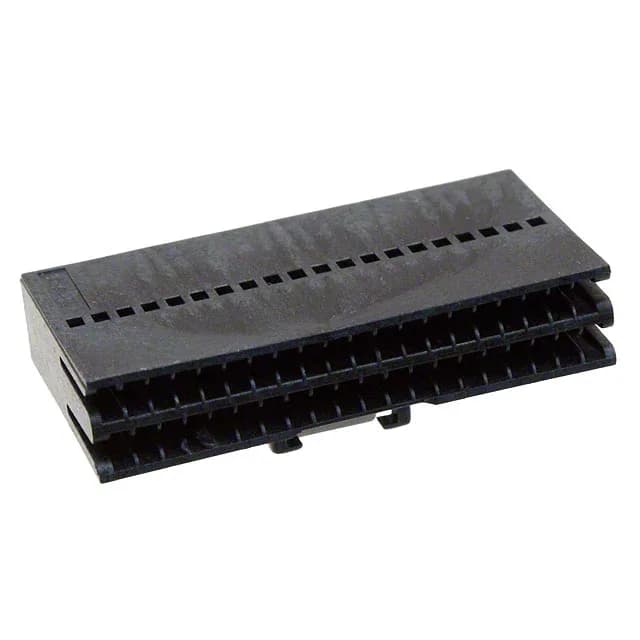

The 4-487937-0: This is a 40-position, dual-row FFC receptacle housing from the AMPMODU System 50 series. Accepts FFC thickness 0.05-0.08 mm.
The housing ships without contacts. The matching crimp terminals for the AMPMODU System 50 series must be ordered separately to populate the 40 positions.
No — the housing ships without contacts.
