TE Connectivity AMP Connectors 4-87977-8 — Connector Housings

TE Connectivity 4-87977-8 AMPMODU Mod IV Receptacle Housing

MPN4-87977-8
Active

TE Connectivity AMPMODU Mod IV receptacle housing, 4-87977-8, 50 positions, 2 rows, 0.100" (2.54mm) pitch, free-hanging in-line, crimp termination, black nylon housing, contacts not included.

$4.4900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod IV
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

4-87977-8 specifications
ParameterValue
SeriesAMPMODU Mod IV
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA), Nylon, Glass Filled
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Row spacing0.100\" (2.54mm)
Rows2
Contact terminationCrimp
Positions50

Product details

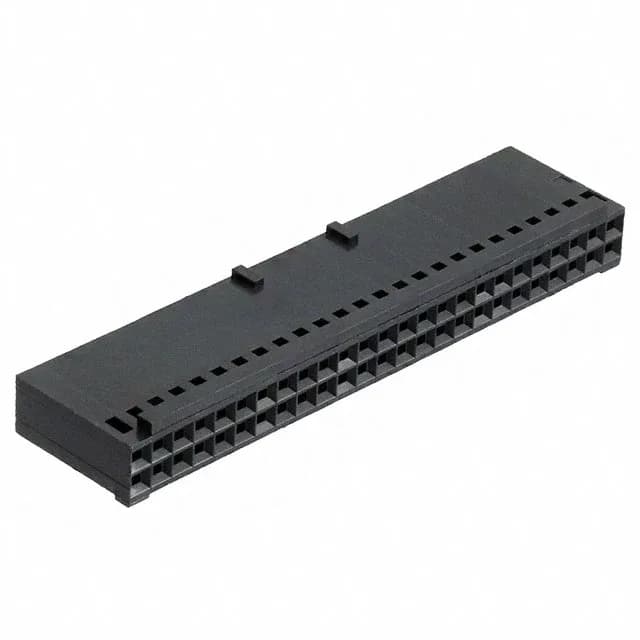

The TE Connectivity 4-87977-8 is a 50-position, dual-row receptacle housing from the AMPMODU Mod IV series. It is a free-hanging (in-line) crimp housing that accepts female socket contacts — the contacts themselves are ordered separately.

Mating Header and Compatible Contacts

This receptacle mates with the AMPMODU Mod IV 0.100" x 0.100" dual-row pin headers. The matching crimp socket contacts are from the same series — the standard AMPMODU Mod IV female crimp contact (typically 0.025" square post). Because the contacts are not included with the housing, you will need to order the appropriate socket terminals and a hand or automatic crimp tool for the wire gauge in your harness.

Frequently asked questions

Where can I buy 4-87977-8 and how do I get a price?

No stock-holding or firm price is listed here.

What contacts are compatible with 4-87977-8?

The 4-87977-8 accepts AMPMODU Mod IV female crimp socket contacts designed for 0.025" square posts on a 0.100" pitch. The contacts are not included with the housing and must be ordered separately. The exact contact part number depends on your wire gauge and plating preference (tin vs. gold).

What is the mating header for 4-87977-8?

The 4-87977-8 mates with AMPMODU Mod IV 0.100" x 0.100" dual-row pin headers. Any unshrouded or shrouded header from the same series with 50 positions on a 0.100" pitch will fit. The header's pin length and plating should be matched to the application's current and mating-cycle requirements.

Is 4-87977-8 RoHS compliant?

Yes, the 4-87977-8 is listed as RoHS compliant.
