TE Connectivity AMP Connectors 42742-1 — Quick-Disconnect Terminals

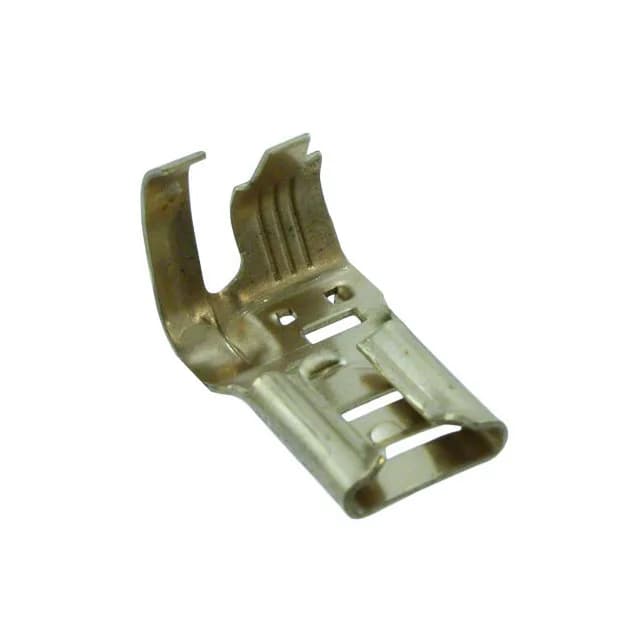

42742-1 TE Faston QC Receptacle, 0.250" Tab, 12-18 AWG

MPN42742-1
Active

TE Connectivity AMP Faston quick-disconnect receptacle, order code 42742-1, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 12-18 AWG, non-insulated, right-angle flag, crimp termination, brass contact.

$0.2300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 42742-1 datasheet (PDF)
RoHSRoHS Compliant
SeriesFaston
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

42742-1 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line), Right Angle
Terminal typeAngled - 90°, Flag
Wire gauge12-18 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.305\" (7.75mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Insulation diameter0.110\" ~ 0.210\" (2.79mm ~ 5.33mm)

Product details

0.250" Tab, Non-Insulated Flag

The 42742-1 is a non-insulated female quick-disconnect receptacle from the TE Faston series, accepting 0.250" (6.35mm) wide tabs with 0.032" (0.81mm) thickness. Designed for 12-18 AWG wire with a crimp termination, the right-angle flag orientation suits free-hanging inline routing where a straight receptacle would crowd the adjacent wiring.

Flag vs Straight — Same Tab, Different Reach

The 42742-1 flag receptacle mates with the same 0.250" tab as the straight 1-1627194-4 (Utilux series) and the 1-1659250-0 (Utilux), but the flag body routes the wire perpendicular to the tab axis — useful in tight panel layouts where a straight pull-off is blocked. The 42742-1 accepts a wider wire range (12-18 AWG) and a broader insulation diameter (0.110" to 0.210") than either Utilux sibling, which are limited to 15-18 AWG and 17-20 AWG respectively.
