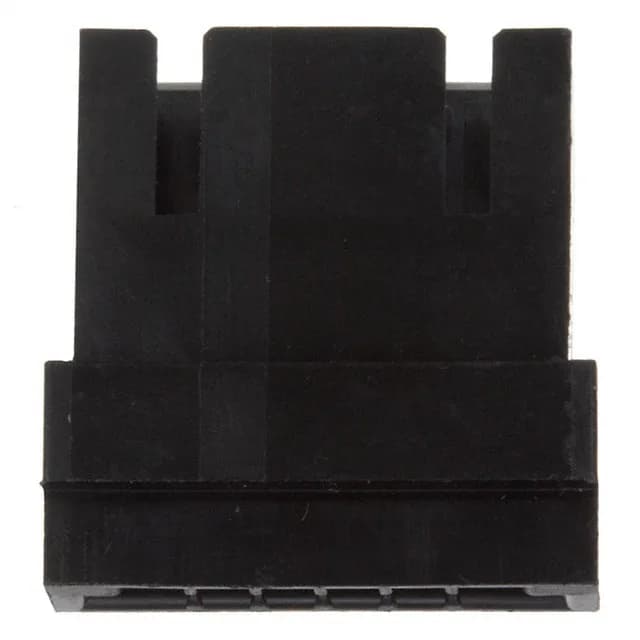

TE Connectivity AMP Connectors 485893-4, FFC pin housing, 6 positions, 0.100" (2.54mm) pitch, single row, for male contacts, 22-32 AWG, UL94 V-0 thermoplastic, detent lock, -65°C to 105°C, 1.5 A, 300 V, Bulk
| Parameter | Value |
|---|---|
| Connector type | Housing for Male Contacts |
| Flat flex type | FFC, Discrete Wire |
| Voltage rating | 300 V |
| Current rating | 1.5 A |
| Wire gauge | 22-32 AWG |
| Operating temperature | -65°C ~ 105°C |
| Housing color | Black |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Locking feature | Detent Lock |
| FFC, FCB thickness | 0.05-0.13mm |
| Insulation diameter | 0.025\" ~ 0.056\" (0.64mm ~ 1.42mm) |
| Positions | 6 |
The 485893-4 is a 6-position, single-row housing for male contacts, designed for 0.100" (2.54mm) pitch FFC or discrete wire. It accepts 22-32 AWG wire and FFC thickness 0.05-0.13mm. The thermoplastic housing carries UL94 V-0 flammability rating.
The housing accepts wire insulation diameters from 0.025" to 0.056" (0.64mm to 1.42mm), covering 22-32 AWG stranded or solid conductors.
485893-4 is sourced to order against your RFQ. Submit a request with your target quantity for current pricing and lead time – we confirm availability at quote time. No stock-holding claim.
No – the part note explicitly states Contacts Not Included.
The housing accepts male contacts for 22-32 AWG wire. TE Connectivity's AMP family includes several crimp terminals for this pitch – confirm the exact contact part number against your wire gauge and plating requirement.
Verify your cable thickness is within 0.05-0.13mm.
