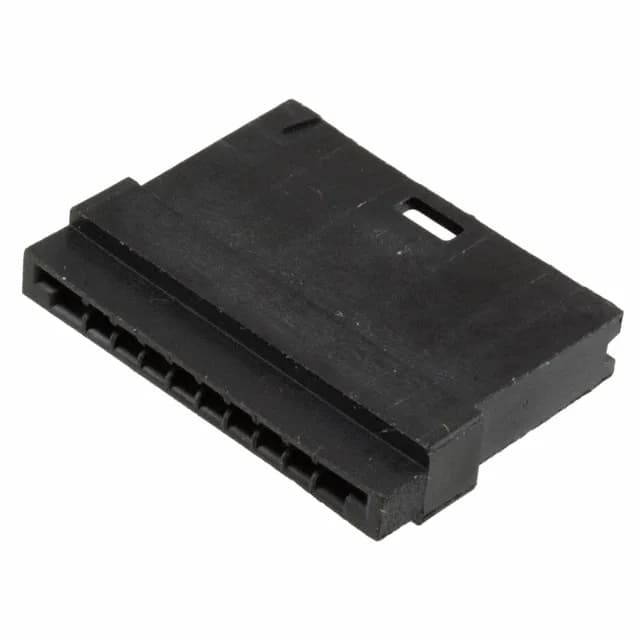

TE Connectivity AMP Connectors FFC pin housing, 10 positions, 0.100" (2.54 mm) pitch, 1.5 A, 300 V, detent lock, UL94 V-0, -65°C to 105°C, housing for male contacts, contacts not included.
| Parameter | Value |
|---|---|
| Connector type | Housing for Male Contacts |
| Flat flex type | FFC, Discrete Wire |
| Voltage rating | 300 V |
| Current rating | 1.5 A |
| Wire gauge | 22-32 AWG |
| Operating temperature | -65°C ~ 105°C |
| Housing color | Black |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Locking feature | Detent Lock |
| FFC, FCB thickness | 0.05-0.13mm |
| Insulation diameter | 0.025\" ~ 0.056\" (0.64mm ~ 1.42mm) |
| Positions | 10 |
The 485893-8: It accepts flat flex cable 0.05-0.13 mm thick or discrete wires 22-32 AWG with an insulation diameter up to 0.056" (1.42 mm).
This housing ships without contacts.
The 485893-8 is a 10-position member of TE's 0.100" pitch FFC pin housing series (base number 485893). Compared to a 16-position sibling, this 10-position version suits narrower FFC cables or lower channel-count harnesses.
No. The listing notes 'Contacts Not Included'.
