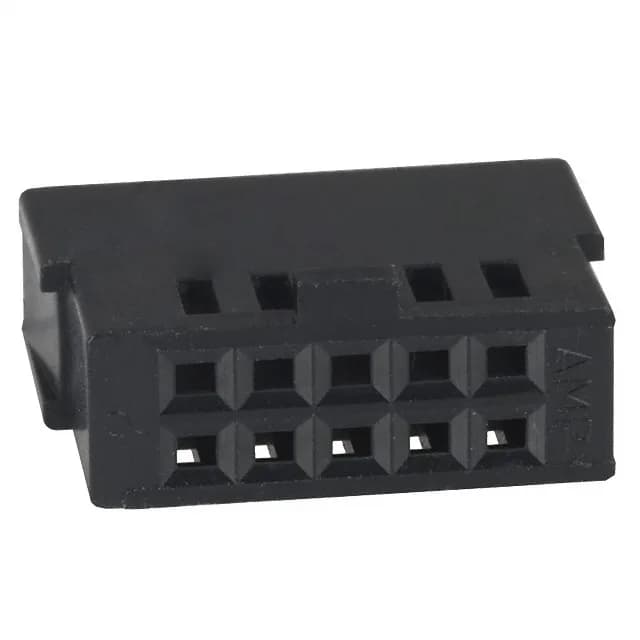

TE Connectivity AMP Connectors 487223-1, FFC/FPC receptacle housing, 10 positions, 0.100" (2.54mm) pitch, dual-row, locking ramp, UL94 V-0 thermoplastic, black, contacts not included.
| Parameter | Value |
|---|---|
| Connector type | Housing for Female Contacts |
| Flat flex type | FFC, Discrete Wire |
| Voltage rating | 300 V |
| Current rating | 1.5 A |
| Wire gauge | 22-32 AWG |
| Operating temperature | -65°C ~ 105°C |
| Housing color | Black |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 2 |
| Locking feature | Locking Ramp |
| FFC, FCB thickness | 0.05-0.13mm |
| Insulation diameter | 0.025\" ~ 0.056\" (0.64mm ~ 1.42mm) |
| Positions | 10 |
This is the shell only: the 487223-1 is a 10-position, dual-row FFC/FPC receptacle housing with a 0.100" (2.54mm) pitch.
The insulation diameter range is 0.025" to 0.056" (0.64mm to 1.42mm), and the FFC thickness it accepts is 0.05mm to 0.13mm. The voltage rating is 300 V, current rating 1.5 A per contact, and the operating temperature range is -65°C to 105°C.
No — the 487223-1 is a bare housing for female contacts. You must order the crimp terminals separately.
The pitch is 0.100" (2.54mm), a standard industrial spacing that matches many legacy FFC and discrete-wire connectors.
