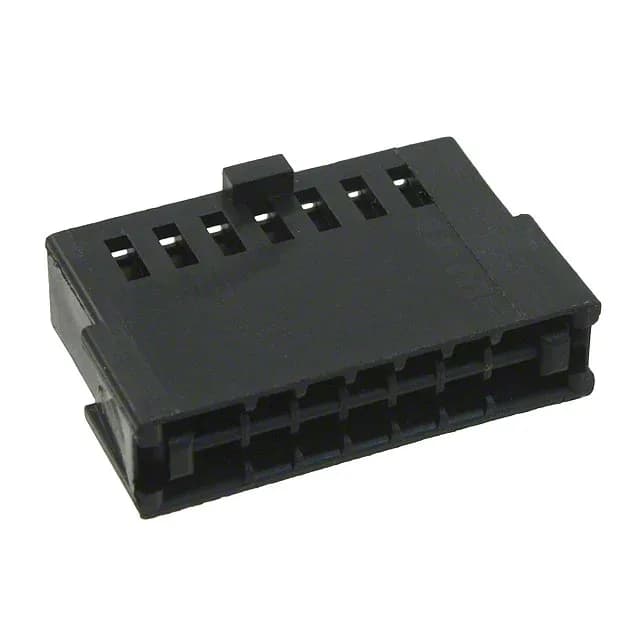

The 487223-2 is a 14-position, dual-row FFC/FPC receptacle housing from TE Connectivity's AMP line. It accepts 22-32 AWG discrete wire or FFC with a thickness of 0.05-0.13mm. The 0.100" (2.54mm) pitch matches standard 0.100-inch headers and IDC connectors. Rated 1.5 A per contact at 300 V, with an operating range of -65°C to 105°C.
This housing ships empty.
The base product number is 487223; other position counts in the same series share the same pitch and contact system.
Mates with a 0.100-inch pitch FFC/FPC plug header (TE or equivalent). Accepts FFC 0.05-0.13mm thick or discrete wire 22-32 AWG with insulation diameter 0.025" to 0.056". Housing material is thermoplastic rated UL94 V-0, black color.
