TE Connectivity AMP Connectors 493989-1 — Connector Housings

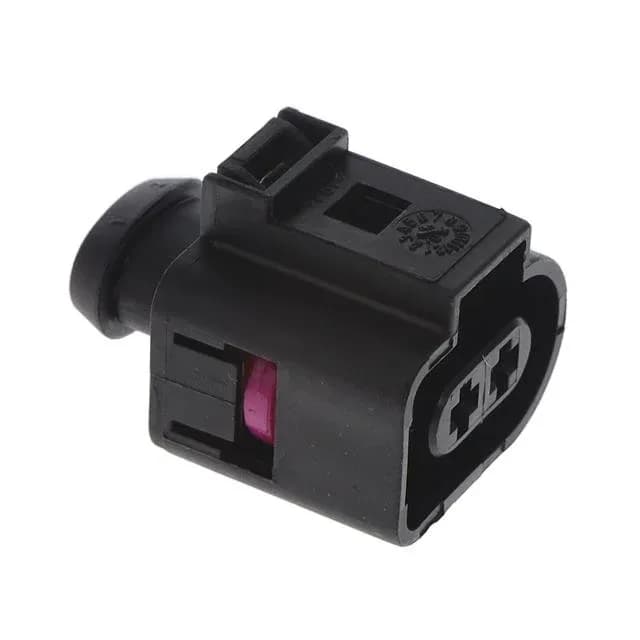

TE Connectivity 493989-1 Junior Power Timer Receptacle

MPN493989-1
Active

TE Connectivity Junior Power Timer receptacle housing, 493989-1, 2 positions, 1 row, 6.00 mm pitch, sealed, black PBT, free-hanging, crimp termination, latch holder fastening, -40°C to 130°C.

$2.0700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesJunior Power Timer
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

493989-1 specifications
ParameterValue
SeriesJunior Power Timer
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 130°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.236\" (6.00mm)
PackageBulk
FeaturesSealed
Rows1
Contact terminationCrimp
Positions2

Product details

2-Position Sealed Receptacle Housing for Harness Builds

The 6.00 mm pitch provides adequate creepage for the voltage class typical of power and signal circuits in engine compartments and control cabinets. Contacts are not included — specify the matching Junior Power Timer crimp socket terminal separately.

Sealed Housing with Latch Holder Retention

The 493989-1 is a sealed housing, meaning the interface between the receptacle and the mating header is protected against moisture and dust ingress when mated with the corresponding sealed header. The single-row, 2-position layout keeps the assembly narrow, which helps in routing the harness through tight conduit or along frame rails.

Frequently asked questions

Where can I buy 493989-1 and how do I get a price?

Submit an RFQ for your target quantity and lead time.

Is 493989-1 a sealed housing?

Yes, the 493989-1 is a sealed housing. The sealed feature is listed in the specification, meaning the connector interface is protected against moisture and dust ingress when mated with the corresponding sealed header.

What contacts fit 493989-1?

The 493989-1 accepts Junior Power Timer female socket crimp terminals. Contacts are not included with the housing — order the matching crimp terminal separately. The contact termination is crimp, and the housing is free-hanging (in-line).
