The housing ships empty. The terminal part number is not listed here, so confirm the wire gauge and plating (gold vs tin) against your application's mating cycle and environment requirements before placing the full BOM order.

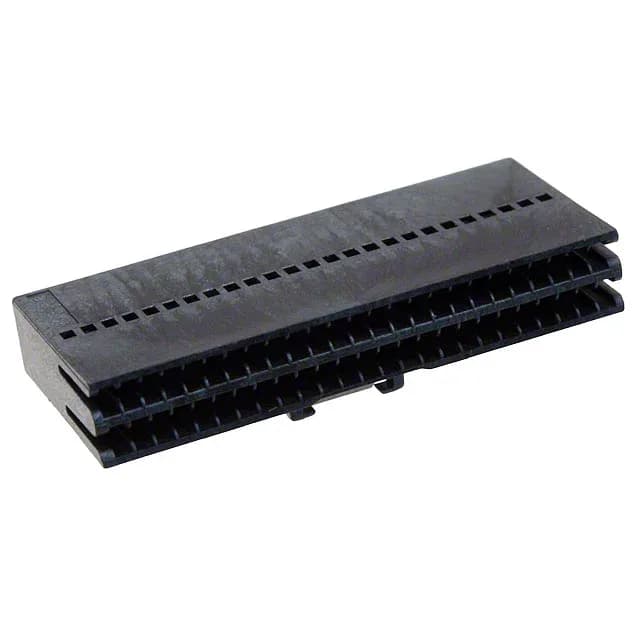

5-487937-0 TE Connectivity AMPMODU System 50 FFC Housing
MPN5-487937-0
Active
TE Connectivity AMPMODU System 50, FFC receptacle housing, 50 positions, 0.050" (1.27mm) pitch, dual row, latch lock, UL94 V-0, -55°C to 105°C, 1.5 A, 100 V, ROHS3 compliant, contacts not included.
$2.7400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU System 50
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Connector type | Housing for Female Contacts |
| Flat flex type | FFC |
| Voltage rating | 100 V |
| Current rating | 1.5 A |
| Operating temperature | -55°C ~ 105°C |
| Housing color | Black |
| Housing material | Polyester |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.050\" (1.27mm) |
| Package | Bulk |
| Rows | 2 |
| Locking feature | Latch Lock |
| FFC, FCB thickness | 0.05-0.08mm |
| Positions | 50 |
Product details
Frequently asked questions
Does 5-487937-0 come with contacts?
No — the listing note states Contacts Not Included. The housing accepts FFC thickness 0.05-0.08mm.
What is the RoHS status of 5-487937-0?
ROHS3 compliant per the manufacturer.
