TE Connectivity AMPMODU Series, Header, Breakaway, 6 Positions, 2.00 mm Pitch, Through Hole, Gold Mating Finish, 30.0µin, Black Insulation
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 200VAC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Overall contact length | 0.319\" (8.10mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |

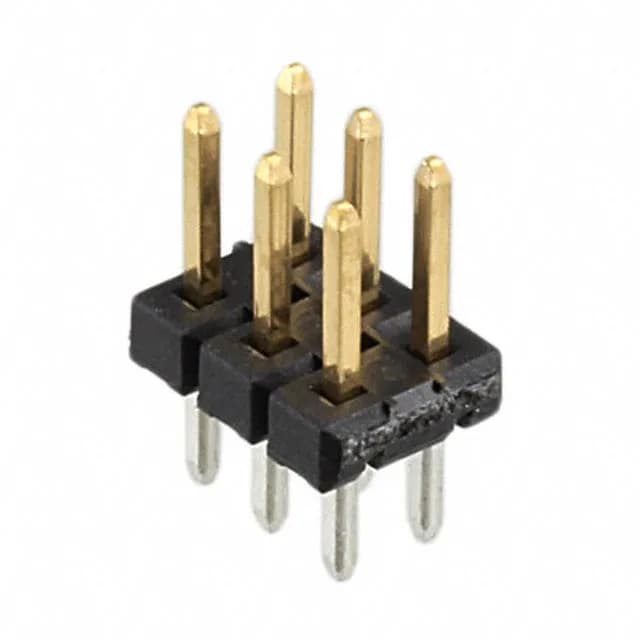

The 5-5176264-8: This is a 6-position, dual-row, unshrouded breakaway header from the AMPMODU series, on a 2.00 mm pitch with 2.00 mm row spacing.
The 0.319" (8.10 mm) overall contact length allocates 0.157" (4.00 mm) to the mating pin and 0.102" (2.60 mm) to the solder post, with the insulation height at 0.059" (1.50 mm) keeping the profile low for tight card-to-card spacing.
This is an unshrouded male pin header, so it mates with any 2.00 mm pitch female socket or crimp housing that accepts 0.157" (4.00 mm) mating pin length. The AMPMODU series includes matching receptacles — confirm the circuit count and contact type for your specific cable or board application.
No. The fastening type is Push-Pull — there is no integral locking latch or ramp. For vibration-prone environments, consider a shrouded header with a friction lock or a separate latching accessory.
