TE Connectivity AMP Connectors 5-534978-3 — Pin Headers

5-534978-3 TE Connectivity AMPMODU Mod II Header, 20 Pos

MPN5-534978-3
Active

TE Connectivity AMP Connectors AMPMODU Mod II, Header, 20 Positions, 2.54mm Pitch, Through Hole, Solder, Gold Mating Finish, 3A, 250VAC, Shrouded 4-Wall, Black Thermoplastic, UL94 V-0

$6.8600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-534978-3 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5-534978-3 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating250VAC
Current rating3A
Operating temperature-65°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.550\" (13.97mm)
Insulation materialThermoplastic

All specifications

5-534978-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin

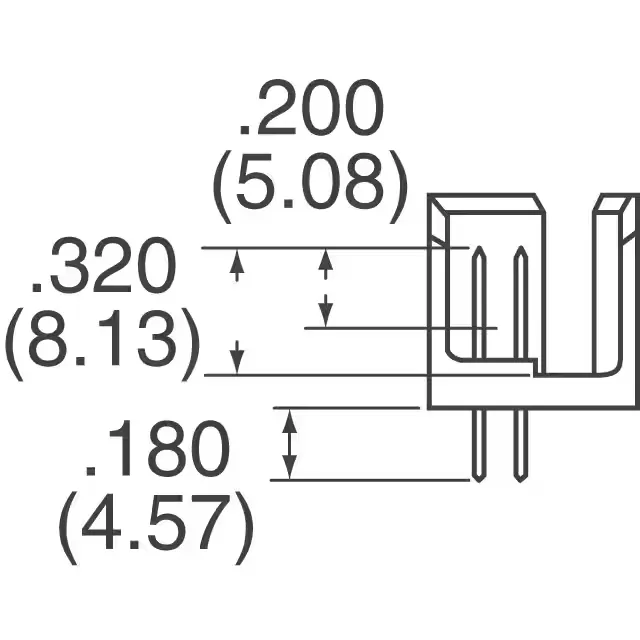

Contact length - post0.180\" (4.57mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board Fit and Signal Count

The 5-534978-3: The dual-row layout packs 20 circuits into a compact board footprint — the row spacing is also 0.100 inch, so the pin field is 2 rows × 10 positions per row.

Current and Contact Interface

Each contact is rated 3 A at 250 VAC. The gold mating finish — 30 µinch over nickel — gives this header a rated mating cycle life well into the hundreds, making it a good fit for equipment that sees regular reconnects in the field. The post finish is tin, which solders cleanly into the plated through-hole.

Frequently asked questions

Where can I buy 5-534978-3 and what is the lead time?

5-534978-3 is an active-production part from TE Connectivity. We source it through independent distribution and quote it to order against your BOM quantity.

Is 5-534978-3 compatible with AMPMODU Mod II receptacles?

Yes. This header is part of the AMPMODU Mod II series and is designed to mate with standard AMPMODU Mod II receptacles. The 0.100-inch pitch and 20-position dual-row layout match the corresponding receptacle part numbers in the same series.
