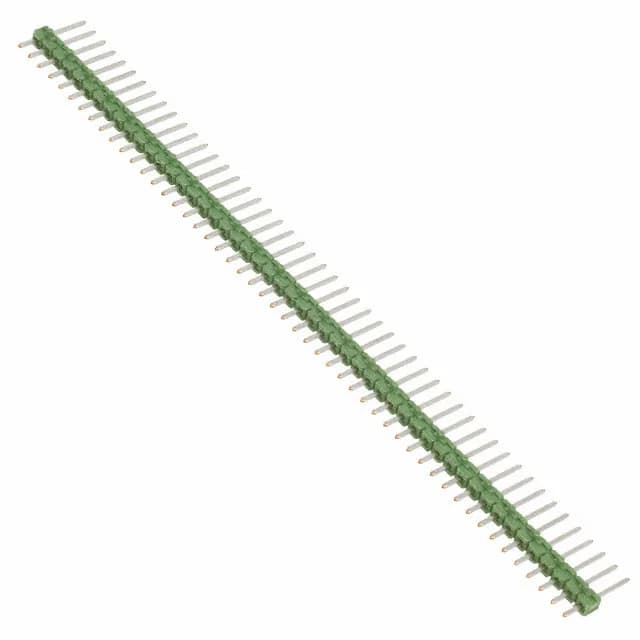

TE Connectivity AMP Connectors AMPMODU Mod II, Header, Breakaway, 50 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Tin Mating Finish, UL94 V-0, Green Insulation
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Green |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.500\" (12.70mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 5-828214-0 is a 50-position, single-row, unshrouded header from the TE AMPMODU Mod II series. The mating finish is 78.7 µinch tin over copper alloy — adequate for 50-100 mating cycles in clean, indoor environments.
As an unshrouded header, the 5-828214-0 mates with standard AMPMODU Mod II receptacle housings and IDC sockets that accept a 0.100" pitch, 0.025" square pin.
The 5-828214-0 is sourced through independent distribution. No stock-holding claim is made — each order is sourced per the BOM line.
Yes. The unshrouded design provides no keying, so correct orientation must be ensured during assembly.
