TE Connectivity AMP Connectors 5-966926-2 — Pin Headers

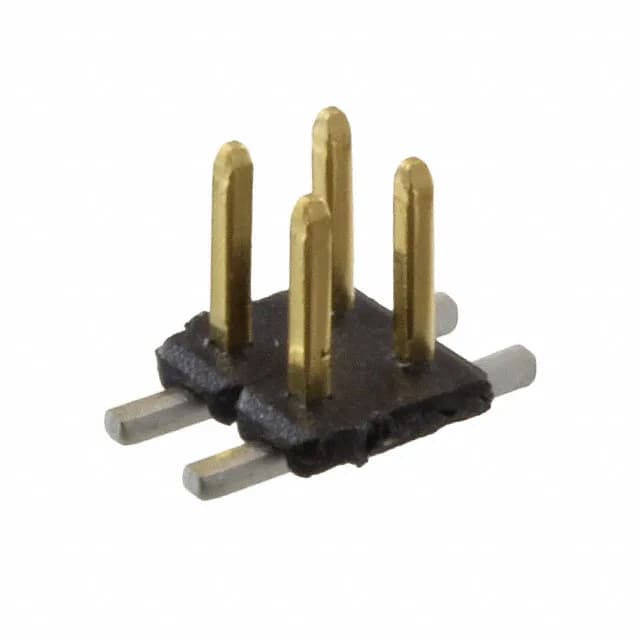

5-966926-2 TE Connectivity AMPMODU 4-Pin SMT Header 2mm

MPN5-966926-2
Active

TE Connectivity AMPMODU, Header Breakaway, 4 Positions, 2.00mm Pitch, Surface Mount, Gold Mating Finish, 1A, 250VAC, UL94 V-0, Active

$1.4900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5-966926-2 key specifications
ParameterValue
SeriesAMPMODU
TypeMale Pin
MountingSurface Mount
Connector typeHeader, Breakaway
Fastening typePush-Pull
Voltage rating250VAC
Current rating1A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.035\" (0.90mm)
Insulation materialLiquid Crystal Polymer (LCP)

All specifications

5-966926-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions4
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.136\" (3.45mm)
Contact finish thickness - post98.4µin (2.50µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

2.00mm SMT Breakaway Header for Compact Board-to-Board or Cable Interconnects

The 5-966926-2: This 4-position, unshrouded header from the AMPMODU series is a surface-mount breakaway design on a 2.00mm pitch, suited for low-profile board-to-board or cable connections where space is tight.

SMT Footprint and Mating Considerations

With a mated contact length of 0.136" (3.45mm) and an insulation height of 0.035" (0.90mm), the header sits low on the board, keeping the stack height minimal.

ROHS3 compliant, with brass contacts and gold/tin plating per the spec.

Frequently asked questions

What is the mating connector for 5-966926-2?

Common mates include AMPMODU socket housings or IDC receptacles with the same pitch.
