What This Guide Module Does in a UPM Backplane

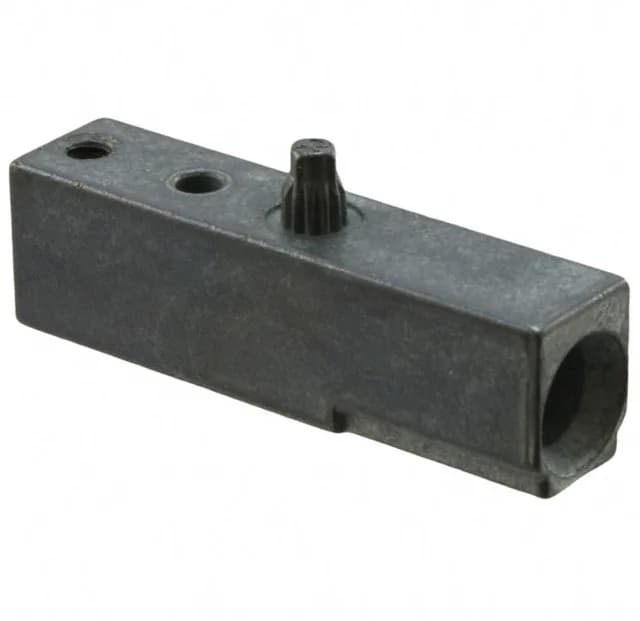

The TE 5223986-3 is a keyed guide module from the UPM (Universal Power Modules) series, designed as a mechanical alignment accessory for backplane power connector systems. It mounts at a right angle and carries a 4-40 threaded insert, providing a registration point that aligns the mating connector halves before the power contacts engage. This prevents contact stubbing and bent pins during blind-mate assembly in card-cage or cabinet builds.
This guide module is intended for use with UPM series connectors and their mating hardware. It is not a power contact or a signal pin — it is the alignment key that ensures the power modules seat squarely. The right-angle orientation places the threaded face parallel to the backplane, so the mating guide pin on the daughtercard engages smoothly as the card slides into the guide rail.
