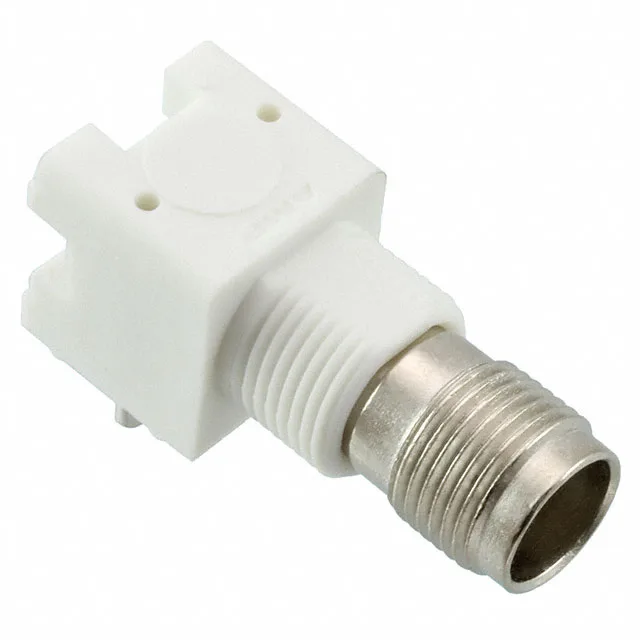

TE Connectivity 5227818-1 TNC Jack, 50 Ohm, 4 GHz, Obsolete

MPN5227818-1
Obsolete

TE Connectivity TNC jack, female socket, 50 Ohm, 4 GHz, right-angle through-hole, bulkhead mount, solder termination, gold-plated center contact, 500 mating cycles, Tube.

$12.9300Ref. price · indicative, final on quote
5227818-1 datasheet
StockOut of Stock
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5227818-1 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C~165°C
Body materialZinc
Housing colorNatural, Silver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageTube
FeaturesBoard Guide, Isolated
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

What is the 5227818-1?

It features a right-angle, through-hole mounting with a bulkhead front-side nut for panel installation.

Is 5227818-1 Obsolete?

Yes, the 5227818-1 is officially obsolete. There is no listed replacement or cross-reference from the manufacturer.

Key Specifications and What They Mean

The 50 Ohm impedance and 4 GHz frequency cap define its RF signal path — it's a standard 50-ohm system connector, good for telecom, test equipment, and instrumentation up to 4 GHz. The right-angle through-hole with bulkhead mount means the connector body sits perpendicular to the PCB and is secured to the panel from the front — the board guide aids alignment during assembly, and the isolated body helps with RF shielding.

Termination and Mounting Details

The center contact is a solder cup, and the shield is soldered to the ground plane or cable braid. The mounting is through-hole with a right-angle orientation, and the bulkhead is secured with a front-side nut. The package is Tube.

Frequently asked questions

Where can I buy the 5227818-1?

The 5227818-1 is obsolete but can be sourced through independent distribution. Submit an RFQ for current pricing and availability — we quote to order against your BOM quantity.

What is the replacement for 5227818-1?

There is no official replacement or cross-reference listed by TE Connectivity for the 5227818-1. For an alternative, check the TE TNC connector family with similar 50 Ohm, 4 GHz, right-angle bulkhead specs, but verify the footprint and mounting dimensions against your design.

What are the specifications of 5227818-1?

The 5227818-1 is a TNC jack, female socket, 50 Ohm impedance, 4 GHz max frequency, 500 V rating, 500 mating cycles, right-angle through-hole bulkhead mount, solder termination, gold-plated center contact, operating temperature -65°C to 165°C.

Does 5227818-1 have a board guide?

Yes, the 5227818-1 includes a Board Guide feature, which aids in aligning the connector during PCB assembly.
