TE Connectivity AMP Connectors 647609-8 — Pin Headers

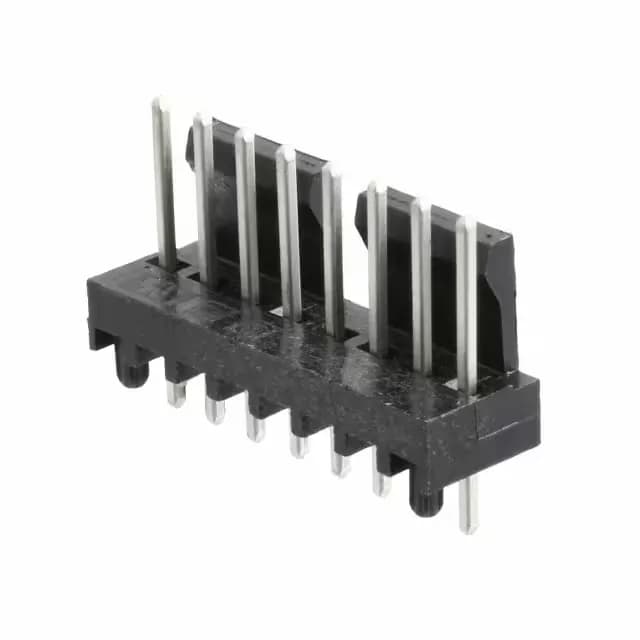

647609-8 TE Connectivity MTA-100 Header 8 Pos 2.54mm

MPN647609-8
Active

TE Connectivity AMP Connectors MTA-100, 647609-8, Board to Cable/Wire Header, 8 Positions, 0.100" (2.54mm) Pitch, Single Row, Through Hole, Solder, Friction Lock, Tin-Lead Contacts, UL94 V-0

$1.4600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 647609-8 datasheet (PDF)
RoHSRoHS Compliant
SeriesMTA-100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

647609-8 key specifications
ParameterValue
SeriesMTA-100
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.347\" (8.81mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled

All specifications

647609-8 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Guide
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions8
Contact finish - postTin-Lead
Contact length - post0.135\" (3.43mm)
Overall contact length0.550\" (13.97mm)
Contact finish - matingTin-Lead
Contact length - mating0.290\" (7.37mm)

Product details

8-Position Single-Row Header for Board-to-Wire Harnesses

Tin-lead is less durable than gold for repeated matings; expect a practical limit of a few dozen mating cycles before contact resistance begins to rise.

This header mates with standard MTA-100 receptacle housings (e.g., 640441 series) that accept discrete crimp terminals.

RoHS compliance is confirmed — the part is listed as RoHS Compliant, though the tin-lead contact finish may require an exemption statement for certain regional regulations.

Frequently asked questions

Where can I buy 647609-8 and what is the lead time?

The 647609-8 is sourced to order through our independent distribution channel. No stock-holding claim is made on this page.

Is 647609-8 RoHS compliant?

Yes, the 647609-8 is listed as RoHS Compliant. Note that the contact finish is tin-lead, which may require an exemption statement under certain RoHS directives.

What is the mating connector for 647609-8?

The 647609-8 mates with standard MTA-100 receptacle housings, such as the 640441 series, which accept discrete crimp terminals.
