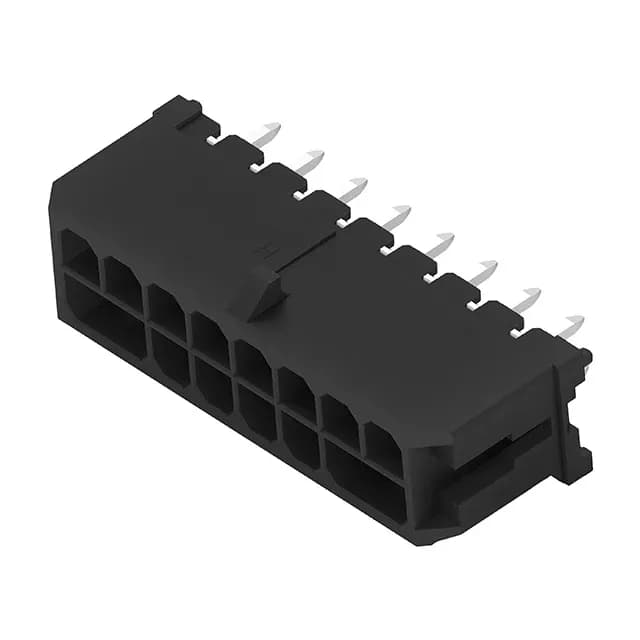

TE Connectivity AMP Connectors ELCON Micro header, 7-2204801-8, 16 power positions, 3.00mm pitch, shrouded 4-wall, locking ramp, through-hole solder, tin 100.0µin contacts, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | ELCON Micro |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Thermoplastic |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 16 (Power) |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 600V rating covers most industrial AC and DC power buses — motor drives, power supplies, and distribution panels fall within that envelope.
If your board layout needs a right-angle exit and fewer circuits, that peer is worth evaluating; for a vertical, 16-position power header, this 7-2204801-8 is the correct choice.
Yes, it is ROHS3 compliant.
The mating pitch is 3.00 mm (0.118") and the row spacing is also 3.00 mm.
