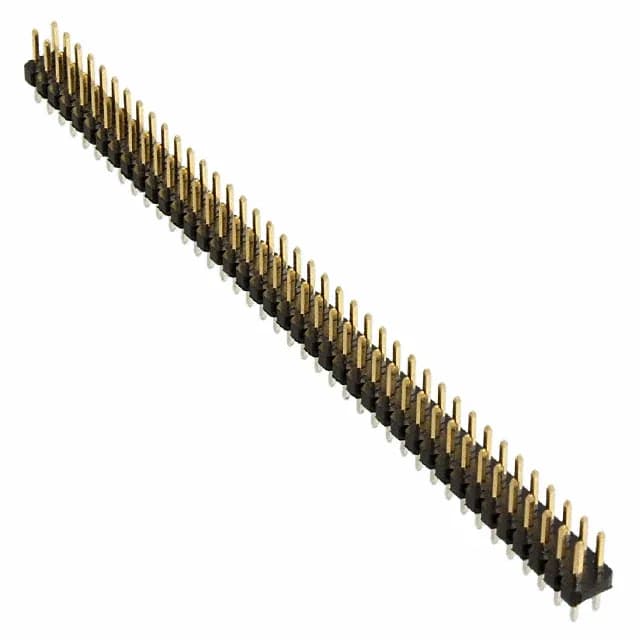

TE Connectivity AMP Connectors AMPMODU series, 8-1734508-0, unshrouded breakaway header, 80 positions, 2.00 mm pitch, 2 rows, through-hole solder termination, gold mating finish, 1 A, 250 VAC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 80 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Overall contact length | 0.319\" (8.10mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
The 8-1734508-0: This is an 80-position, dual-row unshrouded breakaway header on 2.00 mm pitch, with a row spacing of 2.00 mm.
The mating surface carries 8.00 µinch (0.203 µm) gold over the brass contact, with a tin post finish of 100.0 µinch (2.54 µm).
The mating pitch is 2.00 mm (0.079") with a row spacing of 2.00 mm. The header has 80 positions, all loaded, in a dual-row configuration.
