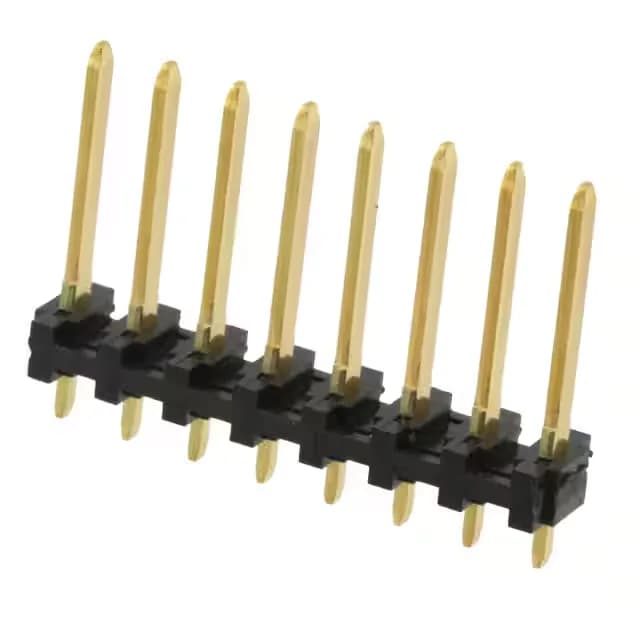

TE Connectivity AMP Connectors AMPMODU Mod I, 8-position unshrouded header, 3.96mm pitch, through-hole solder termination, gold-plated mating contacts, 5A rated, UL94 V-0 thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod I |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.125\" (3.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 8 |
| Contact finish - post | Gold |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.655\" (16.64mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.587\" (14.91mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 87247-8: ROHS3 compliant. Sourced through independent distribution channels.
The 87247-8 is an 8-position, single-row, unshrouded push-pull header at 3.96mm pitch. The 1318699-3 offers higher position density and vibration-resistant locking, but requires a larger board footprint and a different mating receptacle.
The 87247-8 is an unshrouded header — it mates with any AMPMODU Mod I receptacle that accepts 0.156" (3.96mm) pitch, 8-position, single-row female housing with the corresponding crimp terminals.
