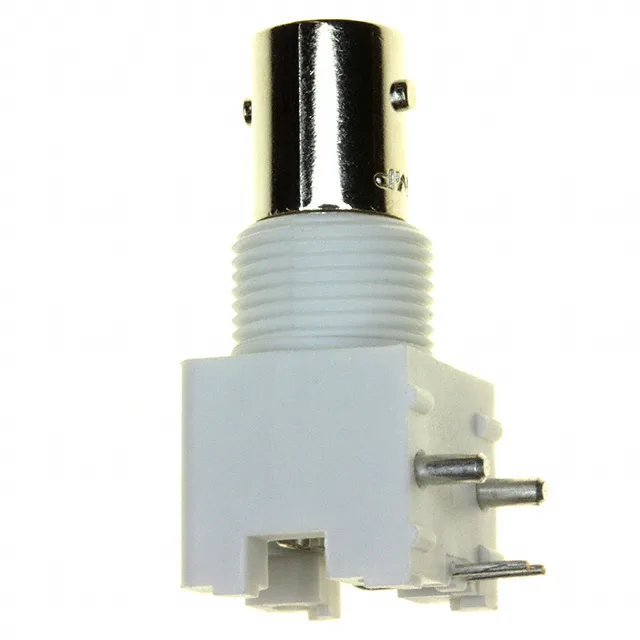

5414168-3
TE Connectivity AMP Connectors
50 Ohms6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 NutBulk
Ref. price$6.6800
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 5414 Series
12 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 5414 Series
The TE Connectivity AMP Connectors 5414 Series series groups 12 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common body finish of Nickel, center contact plating of Gold and ingress protection of -. Variants differ by body material, cable group and center contact material, so you can match the exact body material your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 5414 Series part numbers are active and orderable.
Select a variant by
- Body material
- Zinc · Zinc Alloy · Zinc Die Cast
- Cable group
- - · RG-174, 188, 316 · RG-174, 188, 316 (Double Braid) · RG-174, 316
- Center contact material
- - · Beryllium Copper · Brass · Phosphor Bronze
- Connector type
- Jack, Female Socket · Jack, Male Pin · Plug, Female Socket
- Contact termination
- Crimp · Solder · Solder Cup
- Dielectric material
- Polybutylene Terephthalate (PBT), Polyester · Polymethylpentene (PMP) · Polytetrafluoroethylene (PTFE)
- Fastening type
- Bayonet Lock · Snap-On · Threaded
- Features
- - · Board Guide, Isolated · Board Lock, Filter, Isolated
Shared specifications
- Body finish
- Nickel
- Center contact plating
- Gold
- Ingress protection
- -
- Mating cycles
- 500
- Number of ports
- 1
Variant comparison
| Parameter | 5414168-3 | 5414459-1 | 5414651-3 | 5414907-1 | 5414337-1 | 5414363-4 |
|---|---|---|---|---|---|---|
| Body material | Zinc | Zinc | Zinc | Zinc | Zinc Alloy | Zinc |
| Cable group | RG-174, 188, 316 | - | - | - | - | RG-174, 188, 316 (Double Braid) |
| Center contact material | Beryllium Copper | Beryllium Copper | Phosphor Bronze | Beryllium Copper | Brass | - |
| Connector type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Male Pin | Plug, Female Socket |
| Contact termination | Crimp | Solder | Solder | Solder | Solder | Solder |
| Dielectric material | Polymethylpentene (PMP) | Polymethylpentene (PMP) | Polymethylpentene (PMP) | Polymethylpentene (PMP) | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening type | Threaded | Bayonet Lock | Bayonet Lock | Bayonet Lock | Snap-On | Snap-On |
| Features | - | Board Guide, Isolated | Board Lock, Filter, Isolated | - | - | - |
Request a quote on any TE Connectivity AMP Connectors 5414 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 5414 Series variants differ?
- TE Connectivity AMP Connectors 5414 Series part numbers differ by body material, cable group, center contact material and connector type. Use the selection guide above to pick by body material.
- How many TE Connectivity AMP Connectors 5414 Series part numbers are listed?
- 12 TE Connectivity AMP Connectors 5414 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 5414 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 5414 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
