031-6002-RFX — Amphenol product photo
Amphenol

Amphenol 031-6002-RFX TNC Plug, 11 GHz, 50 Ohm, NRND

MPN031-6002-RFX
NRND

Amphenol TNC plug, male pin, right-angle, 50 Ohm, 11 GHz, crimp shield, solder contact, for Belden 9913/9914, LMR-400, 500 mating cycles, NRND.

$11.0800Ref. price · indicative, final on quote
031-6002-RFX datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-6002-RFX Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating500 V
Frequency - max11 GHz
Cable groupBelden 9913, 9914, LMR-400
Operating temperature-45°C~85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk

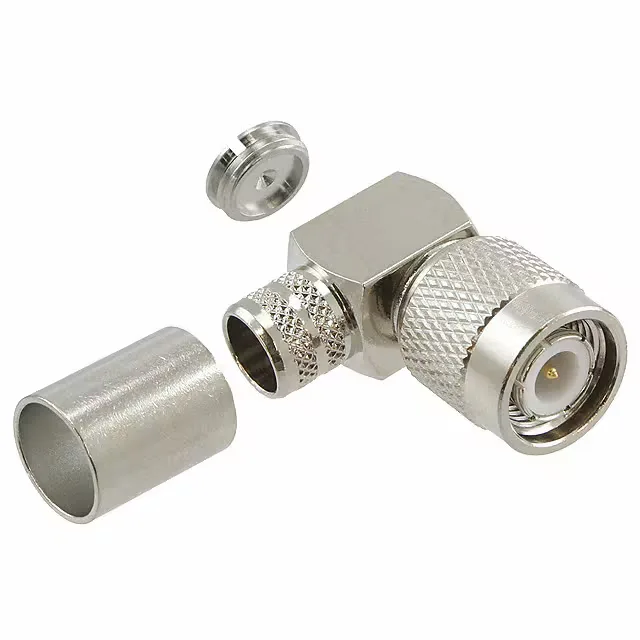

Includes3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.18dB
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

TNC Plug for LMR-400-Class Cable

The right-angle exit helps route the cable tight to a bulkhead or enclosure wall without a hard bend.

This plug is dimensioned for Belden 9913, Belden 9914, and LMR-400 — all low-loss 50 Ohm cables with a similar dielectric diameter and braid coverage. The shield is crimped, the centre contact soldered.

NRND Status and Sourcing

That means it is still available for existing production or repair, but a new BOM line should look at the active Amphenol TNC catalogue for a current-order-code replacement.

Frequently asked questions

What cable types is 031-6002-RFX compatible with?

The 031-6002-RFX is compatible with Belden 9913, Belden 9914, and LMR-400 cables.

Is 031-6002-RFX obsolete or NRND?

The 031-6002-RFX is NRND (Not Recommended for New Designs). It remains available for existing production or repair but is not intended for new BOM lines.
