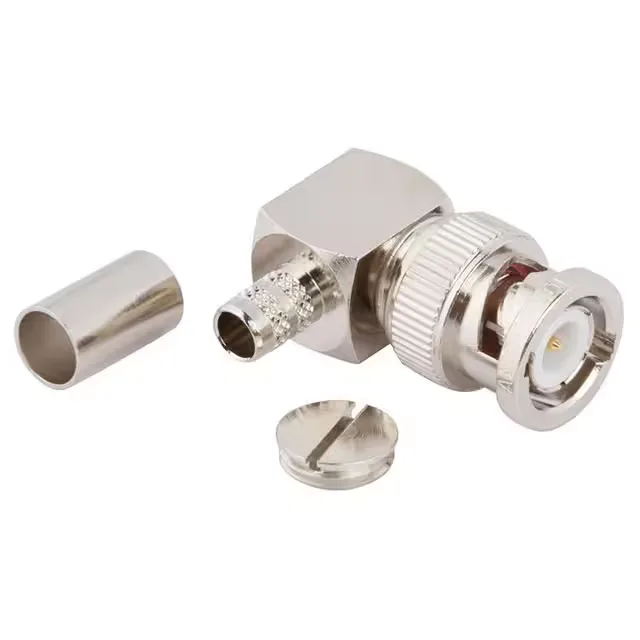

031-6005-RFX — Amphenol product photo
Amphenol

Amphenol RF 031-6005-RFX BNC Right Angle Plug, 50 Ohm, 4 GHz

MPN031-6005-RFX
NRND

Amphenol RF BNC right-angle plug, male pin, 50 Ohm, 4 GHz, 500 V, crimp shield, solder contact, free-hanging in-line, 500 mating cycles.

$11.0300Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-6005-RFX Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupBelden 9258, LMR-240
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolyoxymethylene (POM) Acetal
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

What This BNC Plug Delivers

This plug is dimensioned for Belden 9258 and LMR-240 cables — the ferrule ID and centre-contact solder cup match those jacket and dielectric diameters. Using a different cable shifts the impedance launch and the crimp may not compress the braid fully. The shield is crimped, the centre pin soldered: a standard two-step termination for field-install BNC.

The 031-6005-RFX carries a Not Recommended for New Design (NRND) status. That means Amphenol RF is not actively promoting it for new projects, and the manufacturing window is finite. There is no official direct replacement recorded; if the board layout or cable type allows, a standard straight BNC plug from the same series may be a simpler swap, but that is a fit decision, not a pin-compatible drop-in.

Frequently asked questions

Is 031-6005-RFX obsolete?

The 031-6005-RFX carries a Not Recommended for New Design (NRND) status from Amphenol RF. It is not yet discontinued but is not intended for new designs. Sourcing is available per RFQ while stock lasts.

What cable works with 031-6005-RFX?

The 031-6005-RFX is listed for Belden 9258 and LMR-240 cable groups. The ferrule and centre-contact dimensions are matched to those cable diameters.

Does 031-6005-RFX include the end cap and ferrule?

Yes, the kit includes three pieces: the connector body, one end cap, and one crimp ferrule.

What is the impedance of 031-6005-RFX?

The 031-6005-RFX is a 50 Ohm BNC plug, matched to standard 50 Ohm coaxial cable and equipment interfaces.

Where can I buy 031-6005-RFX?

This part is sourced per RFQ.
