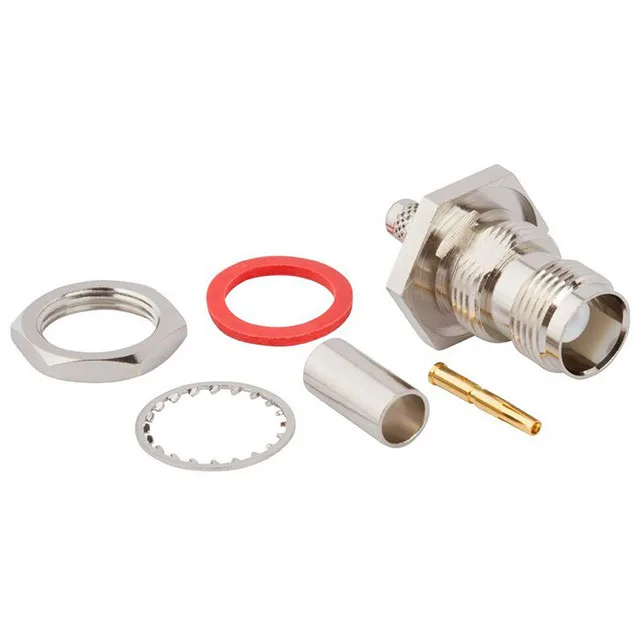

031-6166 — Amphenol product photo
Amphenol

031-6166 TNC Jack, 50 Ohm, 11 GHz, Bulkhead, Crimp

MPN031-6166
Active

Amphenol TNC jack, female socket, 50 Ohm, 11 GHz, 1 port, bulkhead front-side nut mount, crimp shield/contact, RG-58 cable group, gold center contact, weatherproof.

$6.4286Ref. price · indicative, final on quote
031-6166 datasheet
StockIn Stock (17)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-6166 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating500 V
Frequency - max11 GHz
Ingress protectionWeatherproof
Mounting featureBulkhead - Front Side Nut
Cable groupRG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Includes6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.18dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

TNC Jack for RG-58 – Bulkhead, Crimp, Weatherproof

The Amphenol 031-6166 is a TNC jack (female socket) rated for 50 Ohm impedance up to 11 GHz, built for bulkhead mounting with a front-side nut. The cable group covers RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907 — match the body to the reel before you cut the cable.

The 031-6166 is designed for the RG-58 family and its equivalents (LMR-195, Belden 9907). The shield termination is crimp — use the correct die for the ferrule, or the impedance step at the crimp will show up on the VNA.

This jack mounts through a bulkhead panel and secures with a front-side nut, with the included gasket and lockwasher providing a weatherproof seal. The gold-on-phosphor-bronze center contact handles repeated reconnects without fretting, which matters for field-service gear that gets swapped out.

RF Performance

The 500 V voltage rating covers typical RF power levels on these cables. The weatherproof rating means it can live on an antenna or an outdoor enclosure without a secondary boot.

Frequently asked questions

What is the 031-6166 impedance and cable compatibility?

The 031-6166 is a 50 Ohm TNC jack rated to 11 GHz. It is compatible with RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907 cables.

What is included in the 031-6166 package?

The package includes 6 pieces: one connector body, one contact, one ferrule, one gasket, one lockwasher, and one nut.
