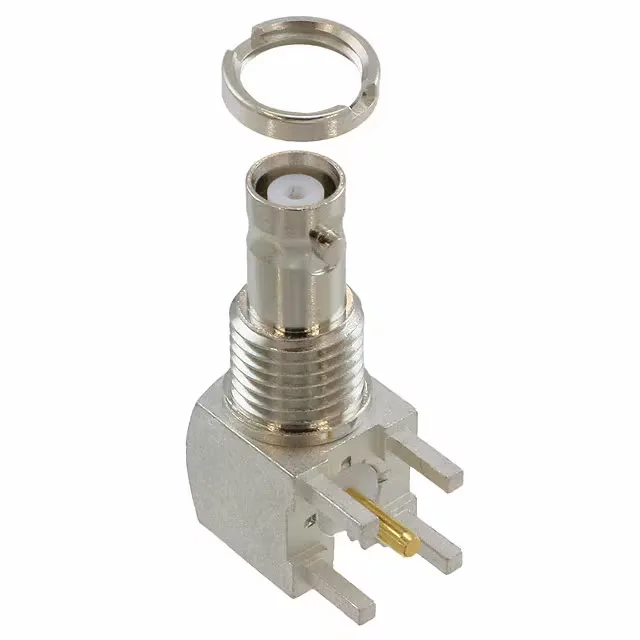

50 Ohm BNC HD Jack for 6 GHz Signal Paths
The 034-5024: The HD variant packs more contacts into the same shell footprint compared to standard BNC, making it a fit for dense RF interconnect panels where signal count per area matters. The bayonet lock secures the mate — a quarter-turn engagement that holds against vibration without the torque sensitivity of a threaded coupling.
Panel Mount and Board Layout Fit
The panel hole diameter and the nut torque are the only mechanical constraints; the rest of the fit is the PCB footprint for the right-angle pins.
