The 034-5025: It sits in the 034-50 base series and carries a single port with a bayonet lock for quick connect-disconnect.
Frequency and signal-path capability
Rated to 6 GHz maximum frequency, 50 Ohm impedance, PTFE dielectric, gold-plated center contact.

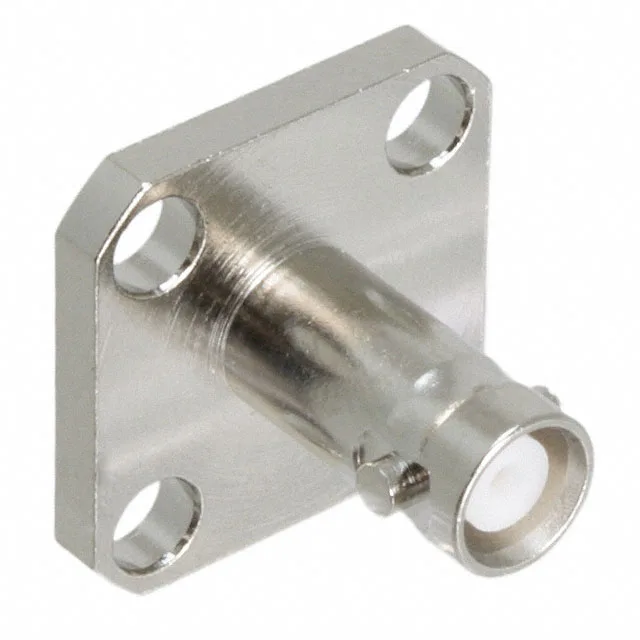

Panel mount with a flange — four-hole pattern secures the connector to the chassis or bulkhead. The shield termination is solder-type, meaning the cable braid is soldered directly to the body, not crimped. Center contact termination is also solder, so assembly requires a soldering iron and steady hand; no special crimp tool needed. The bayonet lock mates with a standard BNC plug and the 500-cycle rating suits test equipment or field-deployed gear that gets connected and disconnected regularly.
Temperature range and materials
The PTFE dielectric holds stable dielectric constant across that span, and the nickel-plated brass body resists corrosion in humid or salt-spray environments. Gold on the center contact prevents oxidation on the signal path — important when the connector sits mated for years in a non-temperature-controlled cabinet.
