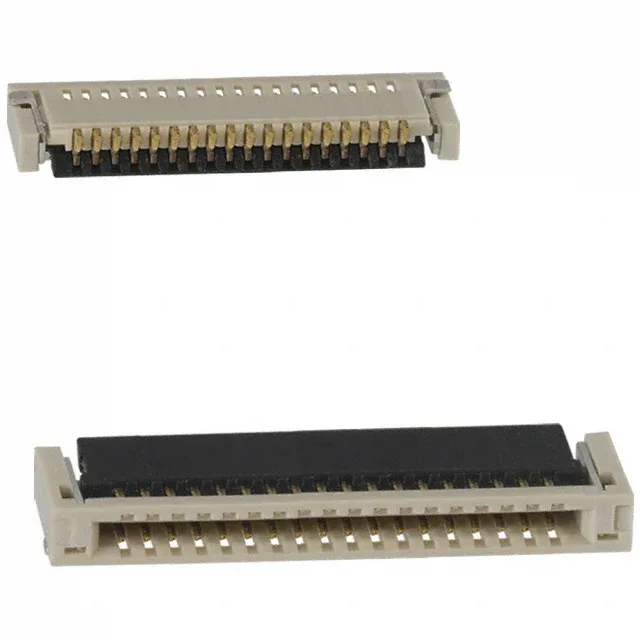

10051922-1810ELF — Amphenol product photo
Amphenol

Amphenol ICC VLL 10051922-1810ELF FPC Connector, 18 Pos

MPN10051922-1810ELF
Active

Amphenol ICC (FCI) VLL FPC connector, order code 10051922-1810ELF, 18 positions, 0.020" (0.50mm) pitch, 0.5 A, 50 V, gold-plated bottom contacts, ZIF slide-lock actuation, surface-mount right-angle, solder termination.

$0.3935Ref. price · indicative, final on quote
10051922-1810ELF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10051922-1810ELF Technical Specifications
ParameterValue
SeriesVLL
Mounting typeSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-55°C~85°C
Housing colorNatural
Actuator colorBlack
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP), Glass Filled
Actuator materialPolyamide (PA9T), Nylon 9T, Glass Filled
Height above board0.051\" (1.30mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions18
Contact finish thickness2.00µin (0.051µm)

Product details

FPC termination with ZIF slide lock

The 10051922-1810ELF is the 18-circuit member of Amphenol ICC (FCI)'s VLL FPC connector series, terminated by solder to the board after the 0.30 mm FPC is inserted and locked with the ZIF slide lock. Gold-plated bottom contacts rated 0.5 A at 50 V, with a 0.020" (0.50mm) pitch that sets the board footprint density.

Position count ladder across the VLL series

Within the VLL 10051922 base series, the 18-position 10051922-1810ELF sits between the 16-position 10051922-1610ELF and the 15-position 10051922-1510ELF — the 0.020" (0.50mm) pitch, 0.051" (1.30mm) height, and ZIF slide-lock actuation are shared across the series, so match the position count to the FPC conductor count.

Frequently asked questions

Will 10051922-1810ELF drop into a panel specified around 10051922-1810EHLF?

The 10051922-1810EHLF shares the same 0.020" (0.50mm) pitch, 0.051" (1.30mm) height, 18 positions, and ZIF slide-lock actuation — the two parts are functionally identical except for housing color (Natural vs Black) and the EHLF's halogen-free housing material. A panel designed for one accepts the other without rewiring.

What compliance documentation does Amphenol ICC (FCI) provide for 10051922-1810ELF?

The 10051922-1810ELF is RoHS Compliant and the housing material carries a UL94 V-0 flammability rating.
