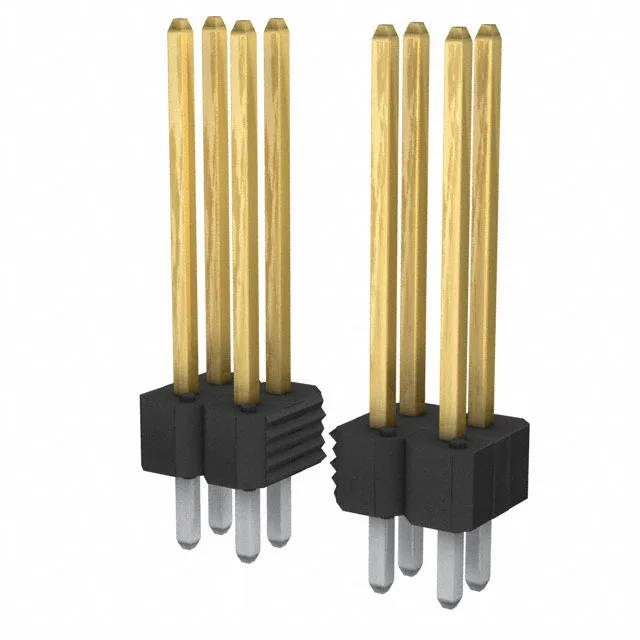

10119109-310016LF — Amphenol product photo
Amphenol

Amphenol ICC (FCI) 10119109-310016LF BERGSTIK II Header

MPN10119109-310016LF
Active

Amphenol ICC (FCI) BERGSTIK® II header, breakaway, order code 10119109-310016LF, 10 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole, solder termination.

$2.2710Ref. price · indicative, final on quote
10119109-310016LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10119109-310016LF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Overall contact length0.720\" (18.29mm)
Contact finish - matingGold
Contact length - mating0.500\" (12.70mm)
Contact finish thickness - mating50.0µin (1.27µm)

Product details

Board-to-board breakaway header, 10 positions

The 10119109-310016LF is the 10-position member of the Amphenol ICC (FCI) BERGSTIK® II breakaway header line, a dual-row unshrouded board-to-board style. Gold mating contacts with 50.0µin (1.27µm) thickness, 0.100" (2.54mm) pitch, and through-hole solder termination suit it for signal-level interconnects where repeated mating cycles are expected.

Active production, bagged packaging

The 10119109-310016LF carries an Active lifecycle status from Amphenol ICC (FCI) and ships in a bag.
